Why the emphasis on solar tracking systems?Compared with the conventional fixed bracket, if the land use area is hardly increased and the cost is only a little bit higher, the electricity gain of 15-30% or more can be obtained, which is undoubtedly the most cost-effective. The application of photovoltaic tracking system in photovoltaic power station is not a simple consumption behavior, but a long-term investment, and the benefits are very considerable.

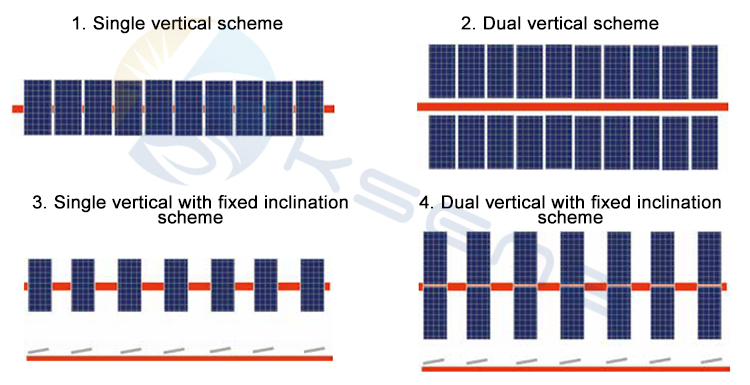

Component arrangement scheme：

We have different scheme to meet different customer's requirement.

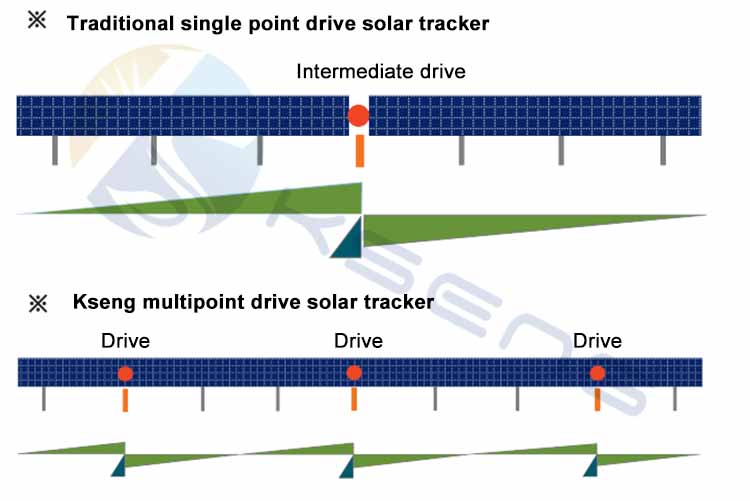

KSENG established a cooperation with CPP, which is the first American company to provide wind engineering services to architects and engineers.Combining the frequency and damping ratio characteristics of the KS tracker tracking system, study the resonance, flutter, gallop,torsional divergence and other results of the KS tracker system caused by aerodynamics, and analyze the influence and instability characteristics of the system during operation.

Characteristic:
1. System damping ratio is greater,can reduce the component amplitude by 50%.

2. spindle force can reduce 40%.

3. Reduce the force on the drive column by 50%.

4. Reduce spindle torsion angle by 60%.

5. Better system wind resistance.

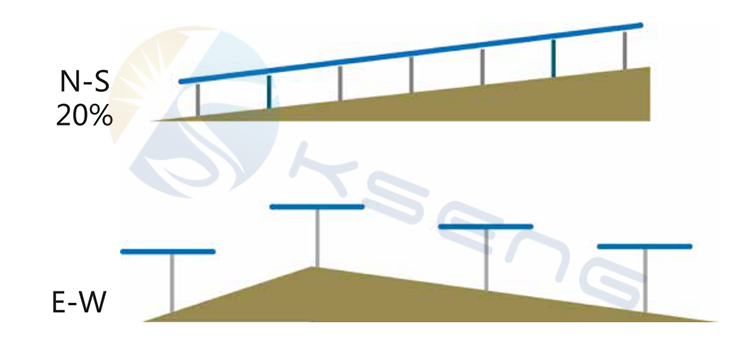

Terrain adaptability:

1. Flexible arrangement, make full use of irregular land and can improve land utilization.

2. North and South can adapt to 20% slope.
3. Unlimited slope in the east-west.
