At present, in order to promote the construction of clean, low-carbon and efficient energy system, China vigorously develop renewable energy,scale and rational develop the construction base which actively promote the development of distributed photovoltaic power generation projects. Under steady and positive development background of global large-scale photovoltaic comprehensive project, for some photovoltaic power station projects under special circumstances, labor can’t cover all aspects, to adopt low energy consumption, high precision and high stability tracking bracket solution is better than fixed bracket solution, and this may become the optimal solution.

How can photovoltaic power generation be more secure and stable under the condition of limited installed capacity?

Multi-point drive design, technical innovation, just choose Kseng solar tracking system.

Kseng concentrated on the innovative research of solar tracking system, launched KST-2PM Double Portrait Horizontal Tracker, the setting of master and deputy control boxes greatly improves the overall adaptability and stability of the system.

Based on tracking accuracy, power generation efficiency is improved, failure risk is reduced,Kseng are committed to providing customers with stable, reliable and convenient power station system.

KST-2PM Multi-drive Double Portrait Horizontal Tracker solution provides a three-fold security guarantee for stability

Multi-drive solution.

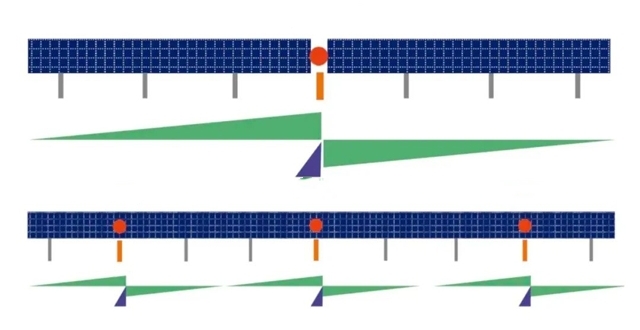

Multipoint drive VS Singlepoint drive

Two times the critical wind speed

KST-2PM Double Portrait Horizontal Tracker provides a triple security guarantee for stability:

First

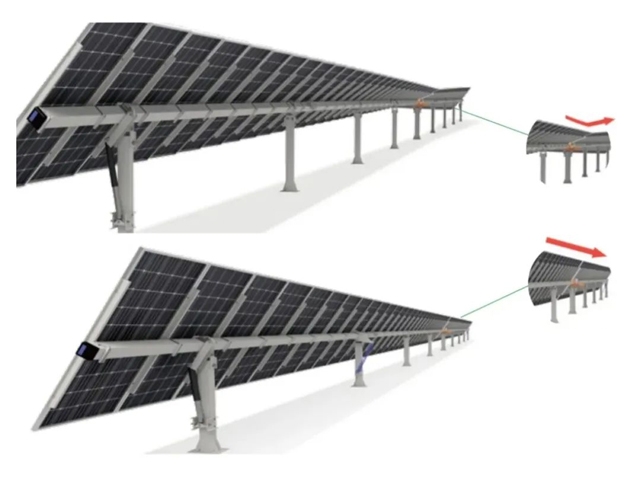

Multi-drive structure

(1) The support points of the motor are increased, and the wind resistance points of the main shaft and the column are concentrated,reduce the probability of structural deformation, effectively improve system stability and reliability.

(2) The natural frequency and damping ratio of the system are increased, and the structural stiffness is enhanced. Multi - point drive structure effectively reduces the amplitude of the system and greatly improve the wind resistance of the module and bracket.

Second

Use electric control linkage

The electronically controlled linkage can detect the Angle of the actuator through the sensor to ensure the closed-loop control of the system, ensure the reliability of the system and accurate tracking Angle.

Third

Master and auxiliary control logic

Adopt master and auxiliary control to control multiple driving motors, real-time detection and analysis of the signal of each driving point. Tracking angles can be automatically adjusted and optimized according to different Angle positions to improve tracking synchronization accuracy and ensure tracking accuracy within 土0.5°.

Conclusion

Kseng plough deep in the field of tracking bracket technology, constantly innovate photovoltaic tracking technology, committed to open the era of safe photovoltaic. With the mission of "Let clean energy better protect the green home", Kseng helps all regions build photovoltaic power stations with "safe, reliable, efficient power generation and worse-free operation", and promotes the zero-carbon development of the country and even the world.
