Asphalt Shingle Roof Solar Mounting System With High Wind Resistance

The KS-RH-011 plain tile roof hook is a breakthrough in solar mounting system of solar asphalt shingles, which solves a series of problems in installation of asphalt shingle roofs. It provides a simple, practical and economical rectification plan for the idle roof.The asphalt shingle roof solar mounting system is a side-mounted mounting system, fast installation, saving cost and time, high efficiency. The safest system is to use plain tile roof hooks to fix the roof installation system.

.Asphalt shingle roof supports are lightweight and reduce the difficulty of transportation.

.Each roof is designed with suitable hooks, which can be selected according to bottom installation or side installation.

. the KS-RH-011 plain tile roof hook can be adjusted according to height adjustment or left and right adjustment.

.Environmental protection, it is durable and recyclable.

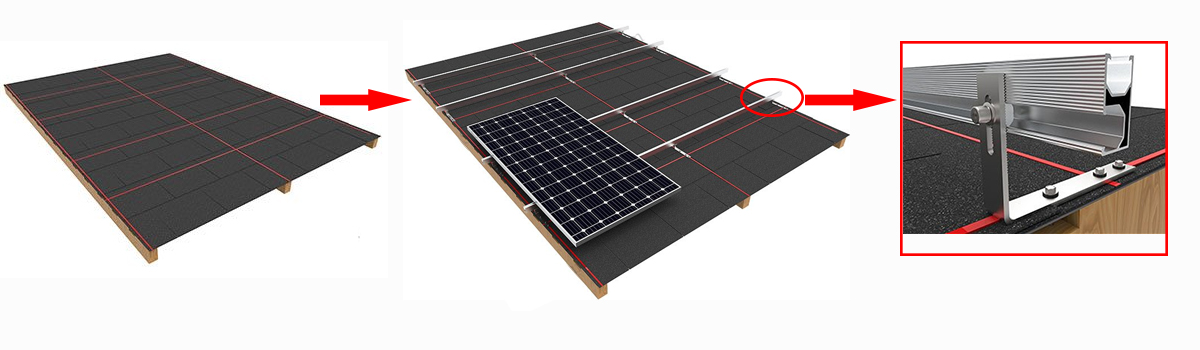

1. Use wooden screws ST6.3*80mm to nail the KS-RH-011 plain tile roof hooks to the asphalt roof.

2. The aluminum rail is fixed on the roof by the asphalt shingle hook.

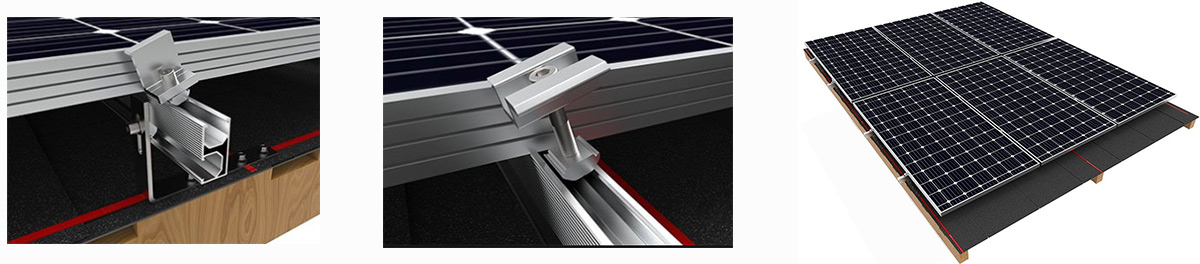

3.  the photovoltaic panel is installed on the aluminum rail, use mid clamp and end clamp to secure photovoltaic panel to solar rail.

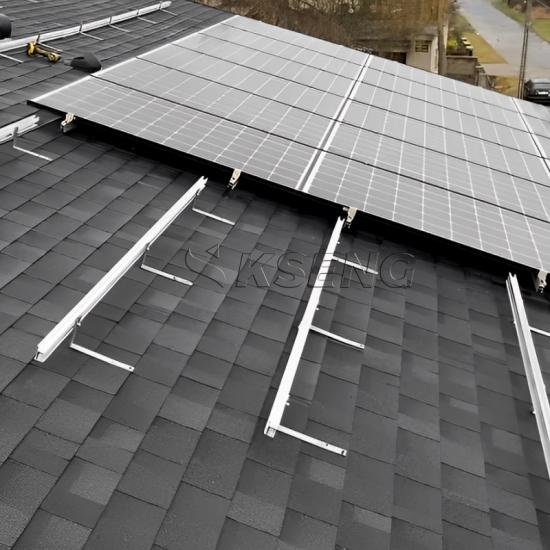

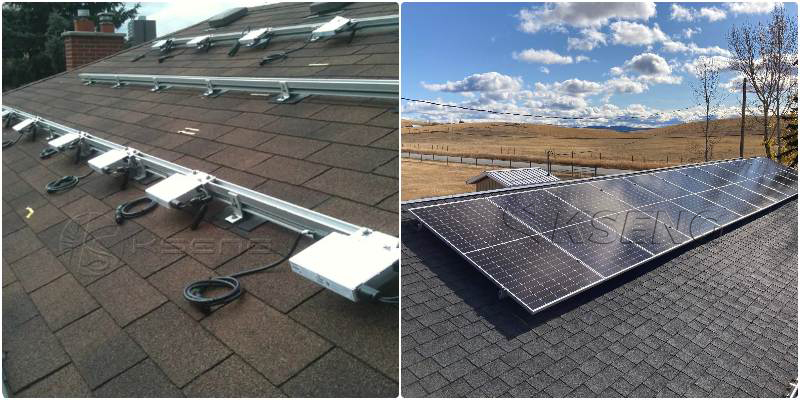

Projects:

FAQ

Q1.How is an asphalt roof bracket system installed?
Q1.An asphalt roof bracket system typically consists of L-foot brackets and double-threaded screws, which can be used in conjunction with wood screws and self-drilling screws or double-ended screws, among others, to accommodate different roofing and beam requirements.

Q2.How does an asphalt roof bracket system ensure watertightness?
A2.Solar Bracket systems are designed with waterproofing in mind, using gaskets or other waterproofing materials to ensure that the waterproofing of the roof is not compromised after installation.

Q3.What is the maximum wind speed that an asphalt roof support system can withstand?

A3.According to Guorineng's description, the maximum wind speed that an asphalt roof support system can be designed to withstand is 60 m/s.

Q4.What is the lifespan of an asphalt solar roof mounting system?
A4.Asphalt roof racking systems are typically designed to last over 20 years and come with a 10-year warranty.

Q5.Are asphalt roof racking systems suitable for all types of solar panels?
A5.Solar Racking systems are designed to be flexible enough to accommodate a wide range of solar panels, but specific suitability may need to be evaluated based on panel size and weight.
