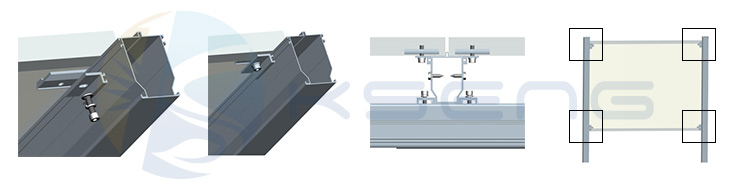

Mid Clamp(also known as middle clamp) is one of important solar mounting accessories, which used for to clamp solar panels between two solar modules. It's assembled with bolt and nut together,by fixing with rail to firmly clamping panels from wind and any other shaking.

3.5 cm ( 1.37″ ) and 4.0 cm ( 1.57″ ) thickness are most comment size standard for framed PV solar panels .

As a professional solar mounting parts and components factory, we have several types of end or mid clamps for your solar projects .

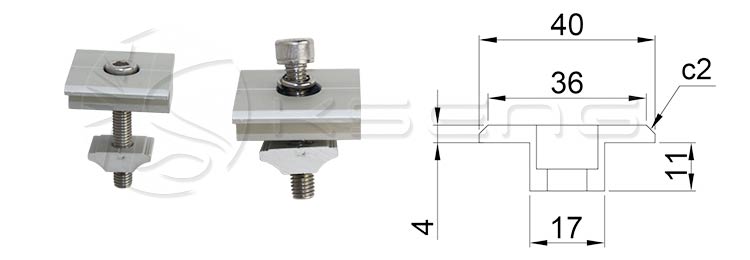

T Shape Mid Clamp for framed solar panels 40 mm in thickness;

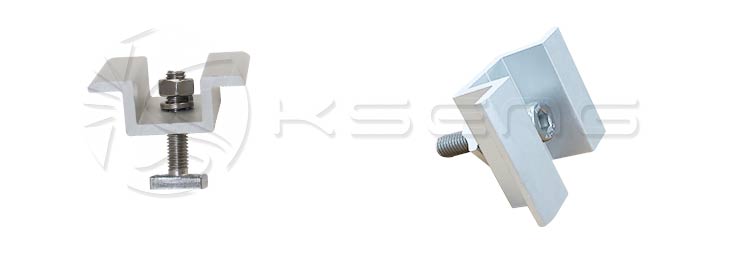

U Shape Mid Clamp for framed solar panels 40 mm in thickness;

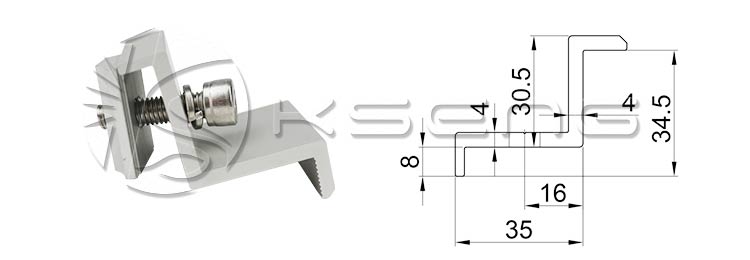

End Clamp for framed solar panels 40 mm in thickness;

80mm length Thin-film Mid Clamp End Clamp for frameless solar panels in thicknes;

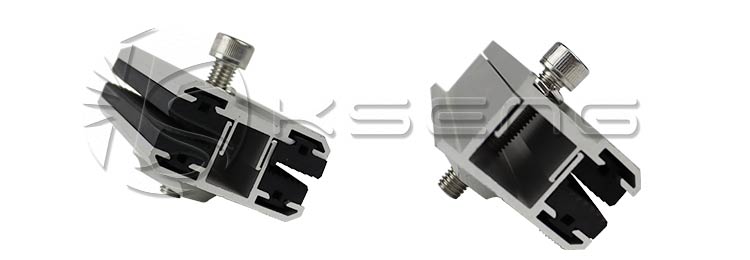

Hidden solar clamp for framed solar panel, the clamp are secured by locking the bottom of the panel.
