Mounting structures are the backbone of a solar power plant as they provide support to modules. These support structures raise solar panels at appropriate angles to ensure that they receive maximum solar irradiation.

Solar mounting structure bracket are used to fix solar panels on surfaces like roofs, building facades, or the ground(carport, agriculture). These mounting systems generally enable retrofitting of solar panels on roofs or as part of the structure of the building (called BIPV).

Roof Mounting

50*50 L feet /  R042 solar rail / bolt and nut/ RF0001 roof clamp / mid clamp end clamp

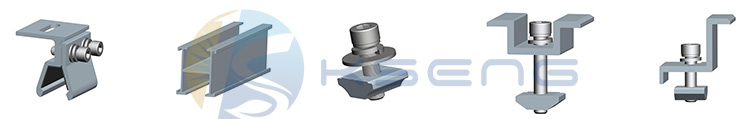

RF0009 Roof clamp/ R017 Solar rail/ bolt and nut/ block/ mid clamp and end clamp

Ground Mount

Solar ground mount system :

A ground mount is when the panels are secured to a rack structure that is connected to the ground with aluminum alloy solar bracket. Ground mounts can be installed in an open area or as a carport over a parking lot.

Ground mounts can be installed wherever the conditions are best for solar, making them a great alternative for someone who doesn’t have enough usable roof space or just prefer to not have panels mounted to the roof.
