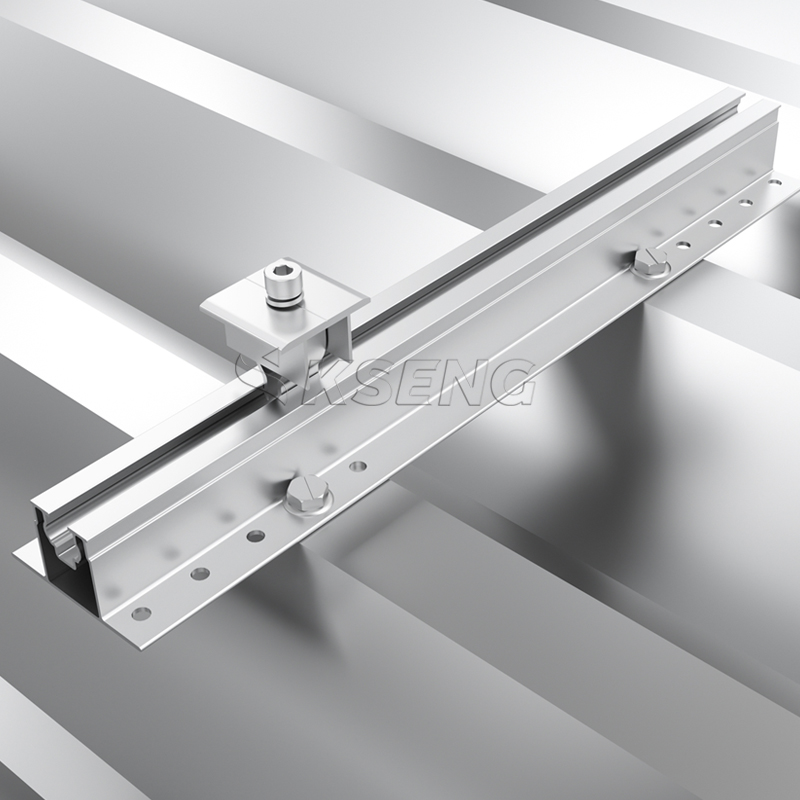

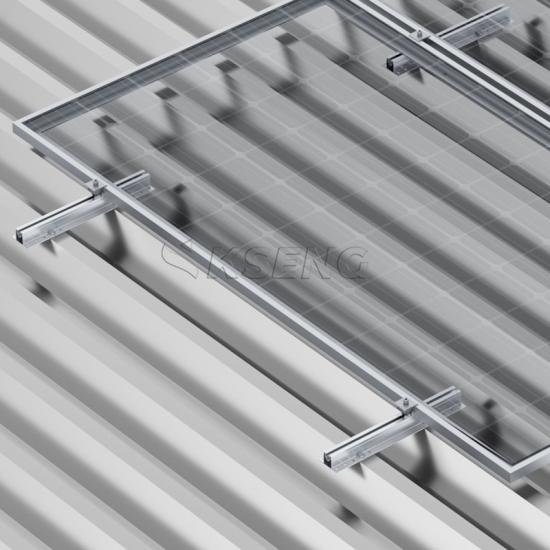

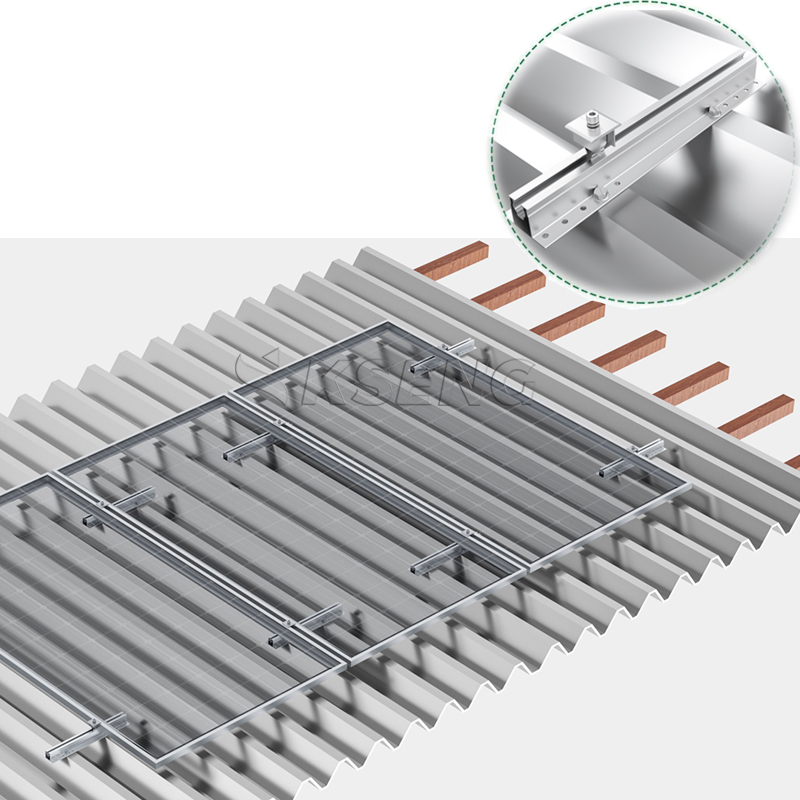

Non-Rail Solar panel mounting bracket metal roof mini rail

Aluminum roof mini rail is a metal roof racking system designed for Trapezoidal metal roof. The material of it is Aluminum 6005-T5 and EPDM which makes the system a good performance at corrosion and good anti-seepage performance. Also, the  high quality of Aluminum allows 15 years of warranty and 30 years of service life. Moreover, it is easy for packing and transportation because of its simple design.

Frequently Asked Questions (FAQ) about Mini Rail Solar Roof Mounting System.
1.Installation location: suitable for pitched roofs and can be installed on parallel roofs with a tilt angle of 10 to 60 degrees.

2.Building height and wind speed: Suitable for building heights up to 20 meters and can withstand a maximum wind speed of less than 60 m/s.

3.Snow load: Maximum snow load is less than 1.4KN/m².

4.Reference standards: Designed with reference to AS/NZS 1170 and other international common standards.

5.Product material: using high strength aluminum alloy Al6005-T5 and stainless steel 304, the color can be natural or customized, anti-corrosion treatment using anodized and stainless steel.

6.Quality Assurance: 10 years warranty and 20 years service life are provided.

7.Ease of Installation: Tilt-fit clips can be fitted from any position on the aluminum extrusion rail, highly pre-assembled with blocks and hooks, reducing installation time and cost.

8.Durability: Designed with a 20-year service life and 10-year quality guarantee in mind, all structural parts are high-strength stainless steel and anodized aluminum alloy to ensure high material durability.

9.Extreme Weather Resistance: Designed to withstand extreme weather conditions, the main load bearing parts have been tested to ensure their structural load bearing capacity.
