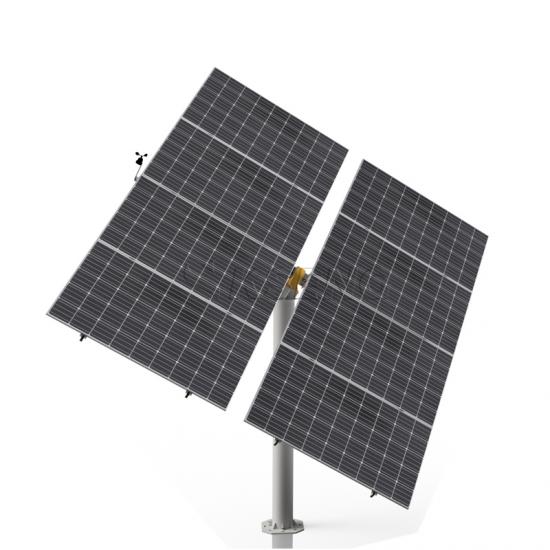

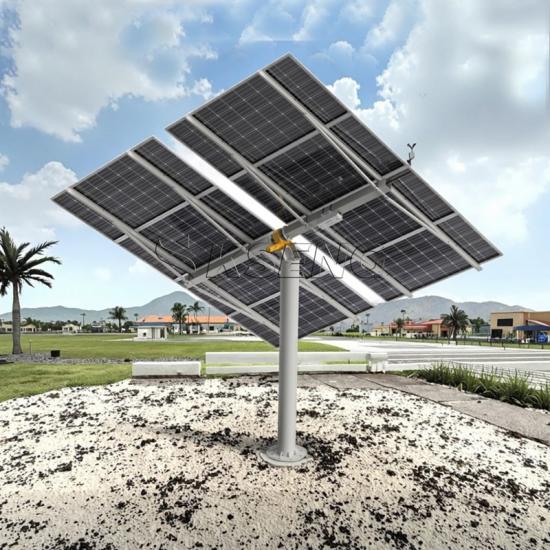

Single post axis tracker solar automatic solar tracking system

Single Post Tracking Racking System is a racking system for solar PV power generation that automatically adjusts the orientation of the PV panels according to the position of the sun to maximize solar energy absorption.

1.Built-in inclination sensor

2.Smart wind protection mode
3.Increase power generation by 15-35%
4.Optional AC power or self-power supply
  • Brand:

    Kseng
  • Product Origin:

    XIAMEN
  • Material:

    HDG steel, Al-Mg-Zn Coating Steel
  • Warranty:

    10 years
  • Service Life:

    25 years
  • Certification:

    TUV, CPP, IEC,etc
  • Wind Load:

    >=18m/s

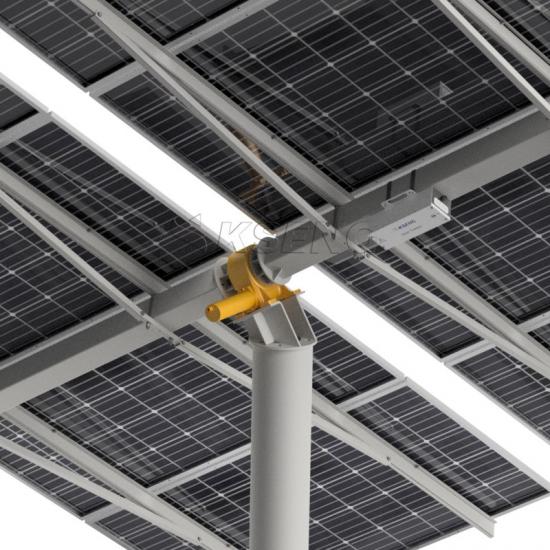

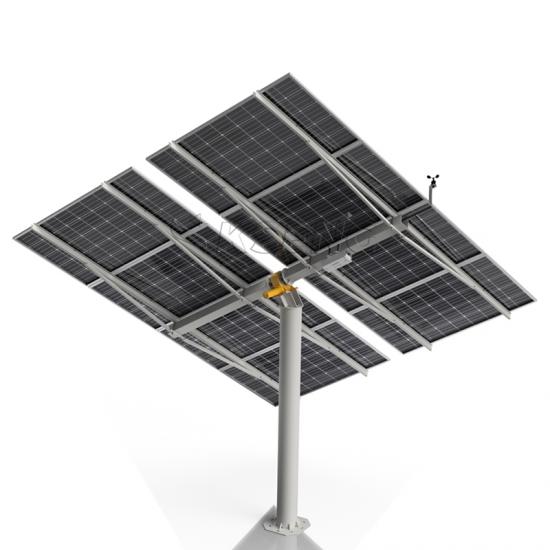

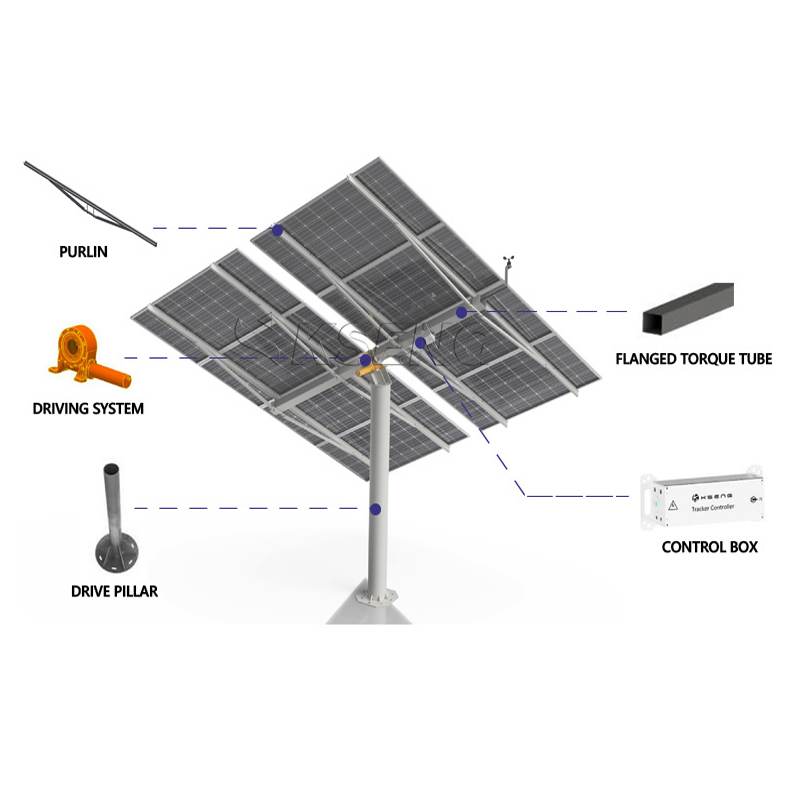

Single post tracking rack system typically consists of a center post and a beam that connects the PV panels. This design allows the PV panels to rotate around a central axis to track the path of the sun. The system is usually equipped with sensors and a control system that automatically adjusts the angle of the PV panels based on the position of the sun, thereby increasing power generation efficiency.

Selling Points

Increased power generation efficiency: By automatically tracking the sun, single post tracking racking systems can significantly increase the power generation efficiency of solar panels by 10-30% compared to fixed mounting systems.

Reduced construction costs: The single column system is quick to install and can be optimized according to the terrain characteristics, reducing the number of piles and thus reducing construction costs.

High reliability: It adopts reinforced structural design such as multi-point drive system and spherical bearing, and passes authoritative wind tunnel test to ensure the high reliability of the system.

Intelligent control: Equipped with intelligent tracking algorithm and intelligent back-tracking algorithm, and minimum shading structure design, it ensures the efficient operation of the system.

Strong adaptability: single column tracking bracket system adapts to a wide range of application scenarios and can provide customized solutions for customers




Tracking Structure Parameters
Tracking Technology
Single Post  Solar Tracking System
Maximum capacity per set
4.8kWp ( Estimated with 600W PV-Modules )
PV-Modules quantity per set
8PCS
Tracking range
±45°( E-W )
Tracking accuracy
±0.5°
Tilt angle
25°- 40°( S-N )( according to project )
Protection of wind speed
≥18m/s ( Windy area )
Foundation form
Concrete foundation
Tracking Controller Parameters
Control system
MCU
Load design standard
GB, ASCE,BS EN,AS
Overheat prevention
Have
Night stow mode
Have
System fault self-diagnosis
Have
Overload prevention
Have
Motor Type
24V DC Motor
Drive System
Slew drive
Power Acquisition Mode
AC-powered or self-powered ( with 8 PV modules )
Solar tracking method
Astronomical algorithm + closed loop(AI Control)


FAQ

Q1: What is the maintenance cost of Single Column Tracking Bracket System?
A1: The maintenance cost of single column tracking bracket systems is relatively low due to the use of highly reliable designs and materials. In addition, some systems are equipped with automatic alarms and remote monitoring, further reducing maintenance costs.

Q2: Are single post tracking rack systems suitable for all types of PV projects?

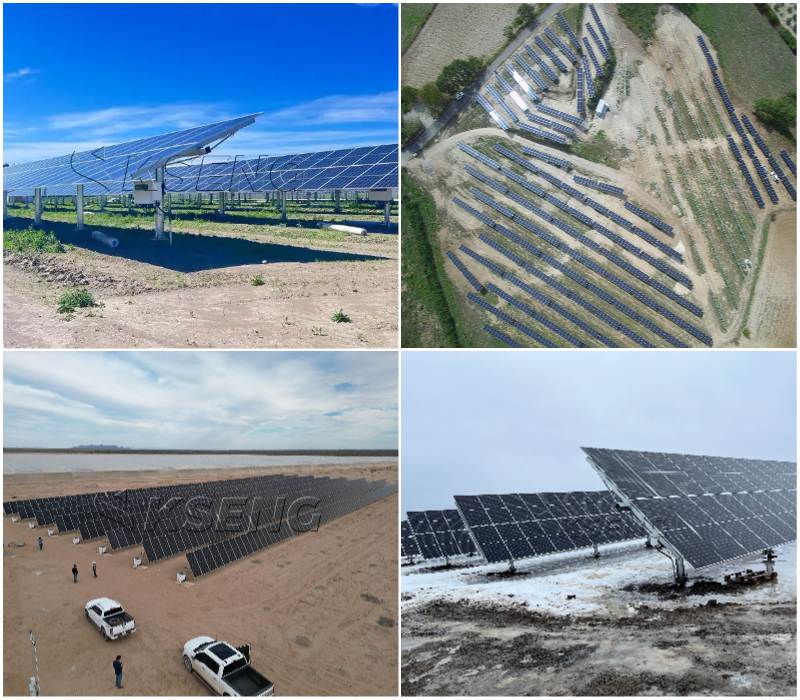

A2: Yes, single column tracking rack systems are highly adaptable and can be customized for different terrains and environments, and are suitable for a wide range of PV projects, including specific projects such as solar-fishing and solar-agricultural projects.

Q3: Is the installation process of Single Pole Tracking Rack System complicated?
A3: No, it is not. Single column tracking rack systems are designed with ease of installation in mind, and typically have a high degree of pre-installation, making them quick to install and eliminating the need for extensive welding work at the project site.

Q4: How does the Single Post Tracking Bracket System withstand harsh weather conditions?
A4: The Single Column Tracking Bracket System is designed with wind engineering and wind tunnel testing in mind to ensure stability and safety in adverse weather conditions.

Q5: What is the payback period for a monopole tracking bracket system?
A5: The payback period depends on a variety of factors, including geographic location, sunlight hours, and system cost. Since a single post tracking rack system can significantly increase the amount of power generated, the payback can usually be realized in a relatively short period of time.
