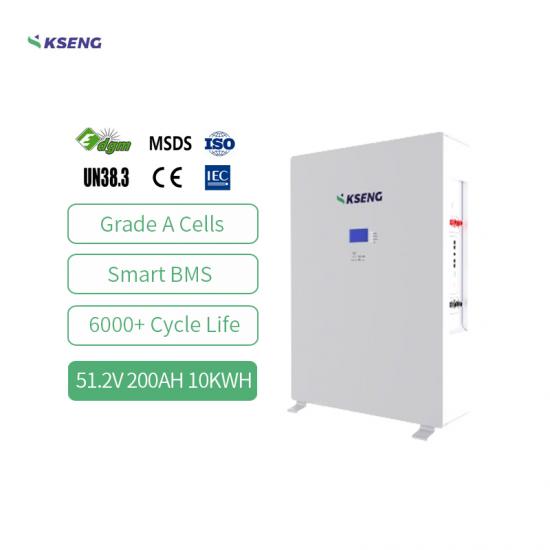

10kw 20kwh 51.2v 200ah Lifepo4 Wall Mounted Lithium lon Battery Home Solar Energy Storage Powerwall

Solar energy storage batteries are essential components in solar power systems that enable the conservation of excess solar-generated electricity for later use, enhancing energy independence and efficiency.

Brand:
Kseng
Product Origin:
China
Shipping Port:
Xiamen
Warranty:
5 Years
Service Life:
≥15 Years(25℃)

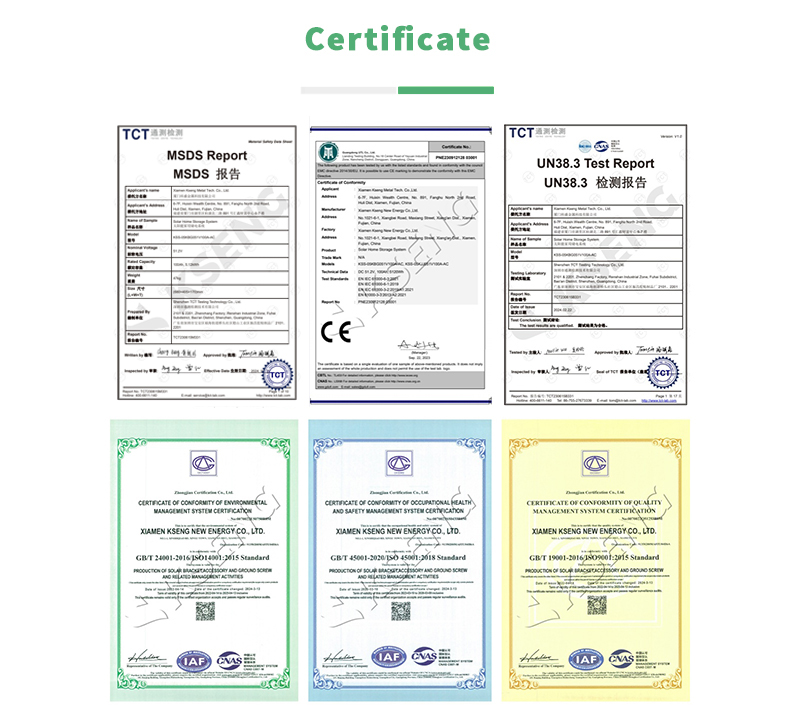

Certification:
CE

Inquiry now

Product Detail

PERFORMANCE SPECIFICATIONS

Model	KS-W01-10KWH

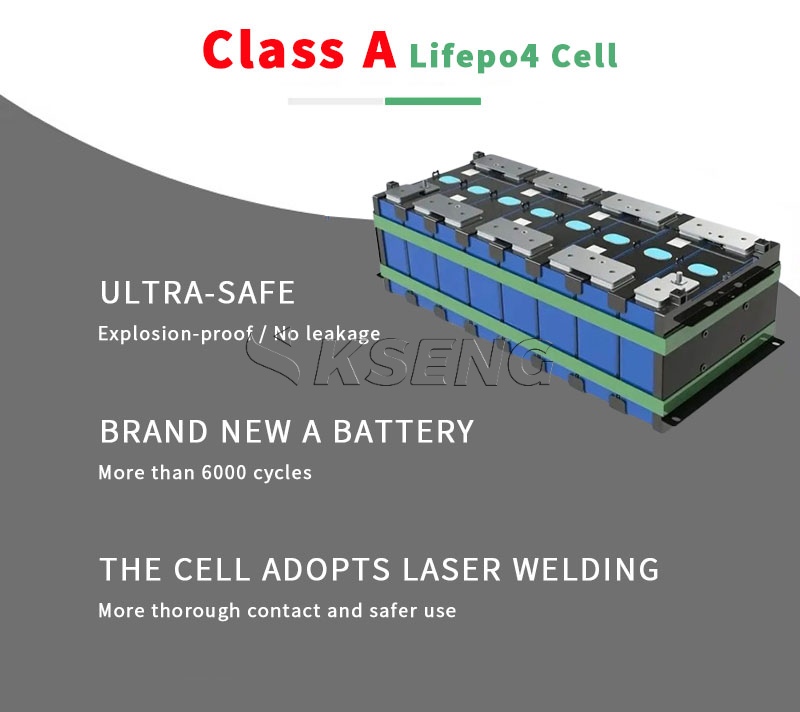

Battery Type	LiFePo4
Nominal Voltage	51.2V(16series)
Nominal Capacity(Ah)	200AH
Rated Energy(KWH)	10.12KWH
Max. Charge/Discharge Current(A)	100A /120A
Voltage Range(Vdc)	43.2-57.6Vdc
Scalability	Up to 15 parallel

COMMUNICATION

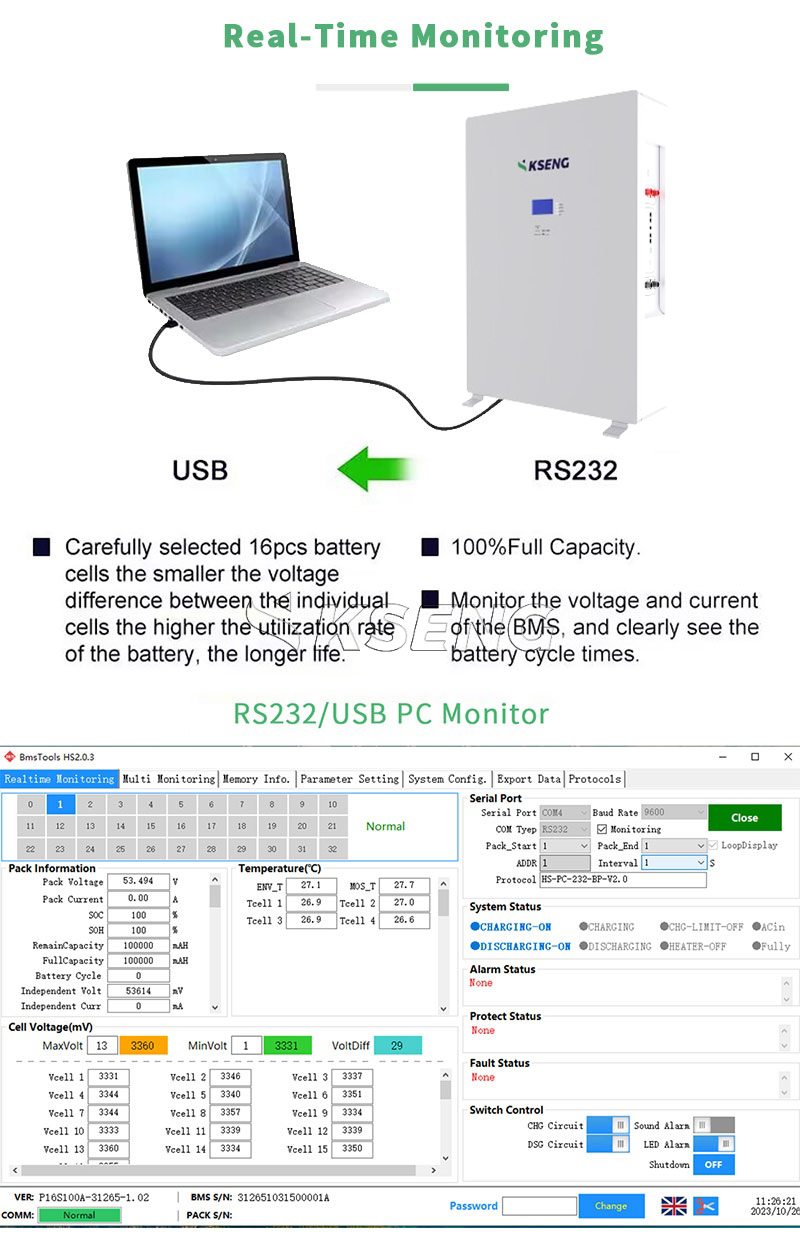

Display	LED indicator + LCD Display
Communication	RS232. ,RS485,CAN

GENERAL SPECIFICATIONS

Working Temperature(C)	Charge:5°°C-55°°C;Discharge:-15C-55°C
Working/Storage Humidity	≤95% (RH) No Condensation Max Operating Altitude (m)
IP Grade	lp21
Cycle Life	≥6000cycles @90% DOD 25 C/0.5C ,60%EOL
Design Life	≥15 Years(25°C)
Warranty	5 Years

MECHANICAL SPECIFICATIONS

Weight(Approx)(KG)	Approx:98±1kg
Dimension(W/D/H)(mm)	(Wall Mount) 580mm* 185mm*795mm

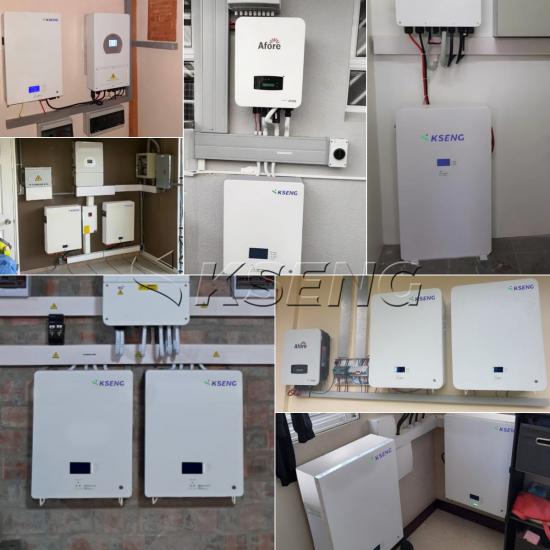

Installation Mode	Wall Mount & Ground Mount
