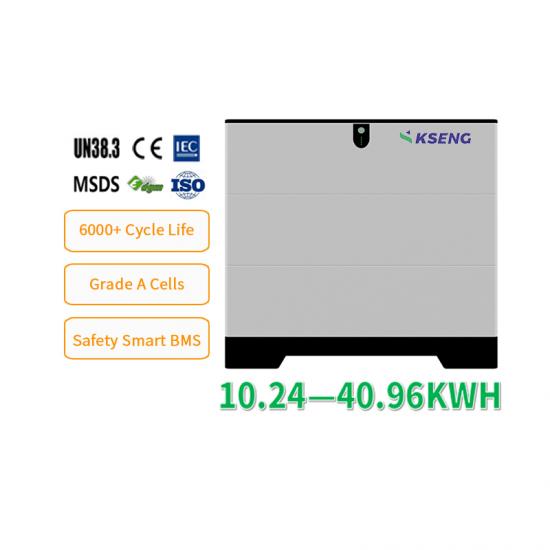

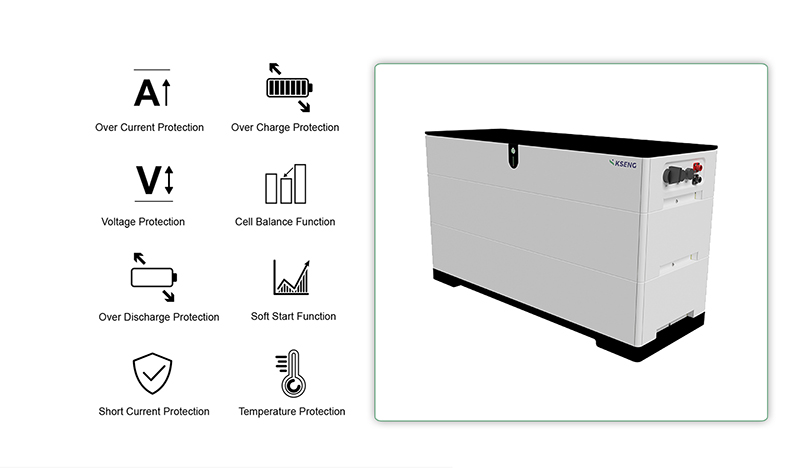

15Kwh 20Kwh 25Kwh 30Kwh High voltage lithium lifepo4 battery home energy storage systems

Energy Storage System Batteries are devices that store electrical energy for use when demand is high or supply is low, optimizing energy use and reducing reliance on fossil fuels

Brand:
Kseng
Product Origin:
China
Shipping Port:
Xiamen
Warranty:
5 Years
Service Life:
≥15 Years(25°℃)
Certification:
CE

Inquiry now

Product Detail

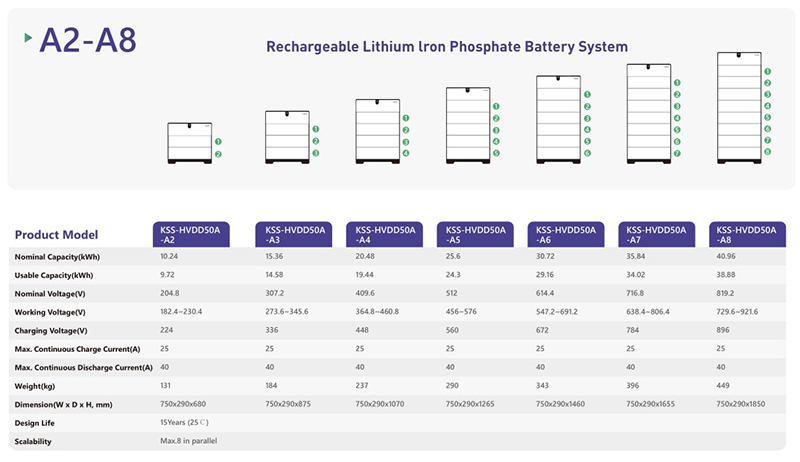

PERFORMANCE SPECIFICATIONS

A1 HVDD-A1
Model	HV Stacked LFP Battery

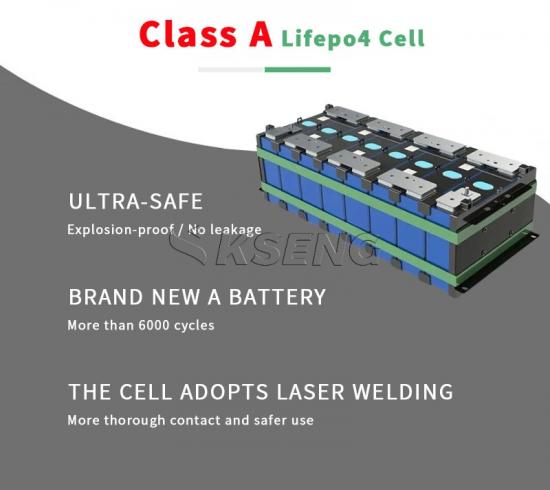

Battery Type	LFP 1P32S
Nominal Capacity	5.12kWh
Nominal Voltage	102.4V
Working Voltage	91.2~115.2V
Charging Voltage	112V
Max. Continuous Charge Current	25A
Max. Continuous Discharge Current	40A
Communication	RS485，CAN
Storage Temperature	0℃~45℃ (Recommended)
Storage Humidity	≤85%(RH)
Working Temperature	Charging:0C~50C Discharging:-20C~50C
Working Humidity	≤95% (RH) No Condensation
Working Altitude	≤2000m
Ingress Protection	IP65
Weight	78kg
Dimension(W x D x Hmm)	1000365195.5
Design Life	15 Years (25°)
Cvcle Life	>6000(25C).60% EOL
Warranty	5 Years

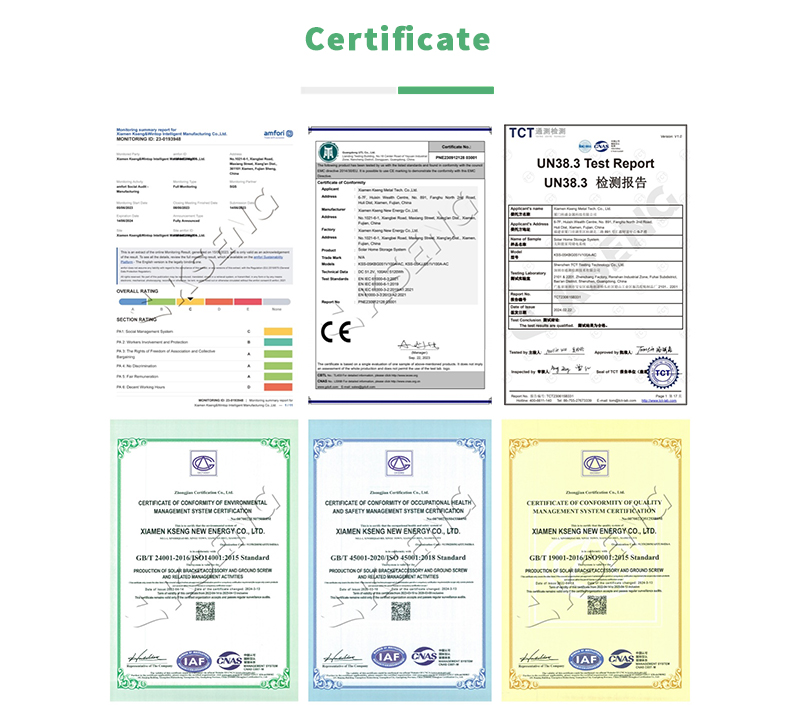

Certifications
