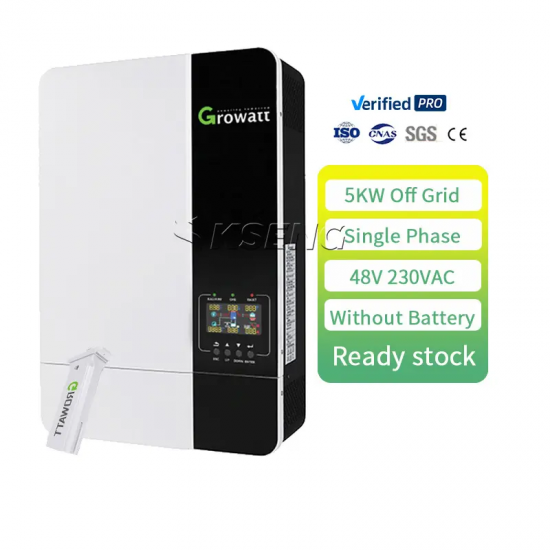

Growatt SPF 5000 ES Off Grid 48v 5000W Solar Inverter With Parallel Function

Solar inverters convert the direct current (DC) produced by solar panels into alternating current (AC) that can be used by homes and businesses.
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Certification:

    CE
  • Application:

    Off-Grid Solar System

After-sales service

*Growatt inverters have obtained more than 20 certifications around the world, and the products have been sold to more than 100 countries and regions in Australia, Europe, America, Asia, Africa, and Latin America on a large scale.
*After-sales stations are located in more than 20 countries around the world.

Products Description

SPF5000ES
Battery voltage
48VDC
INVERTER OUTPUT
RATED POWER
5000VA/ 5000W

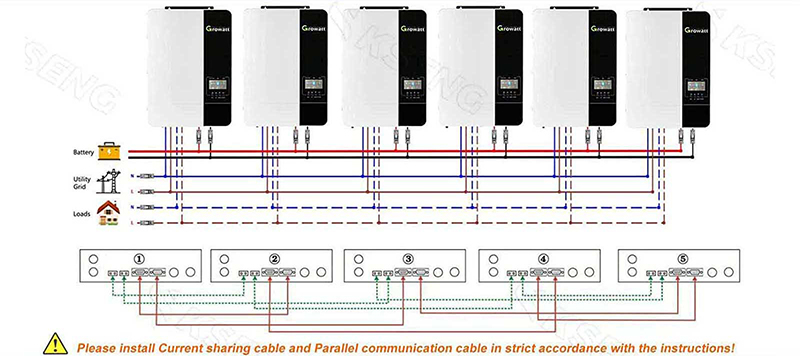

Parallel Capability
Yes, 6 units
AC Voltage Regulation (Battery Mode)
230VAC ± 5% @ 50/60Hz
Surge Power
10000VA
Efficiency (Peak)
93%
Waveform
Pure sine wave
Transfer Time
10 ms (For Personal Computers); 20 ms (For Home Appliances)
SOLAR CHARGER
Maximum PV Array Power
5500W
MPPT Range @ Operating Voltage
120VDC ~ 430VDC
Maximum PV Array Open Circuit Voltage
450VDC
Maximum Solar Charge Current
100A
Maximum Efficiency
97%
AC CHARGER
Charge Current
80A
AC Input Voltage
230 VAC
Selectable Voltage Range
170-280 VAC (For Personal Computers) ;
90-280 VAC (For Home Appliances)
PHYSICAL
Dimension (D/W/H) in mm
485/330/135
Net Weight (kgs)
12
OPERATING ENVIRONMENT
Humidity
5% to 95% Relative Humidity(Non-condensing)
Operating Temperature
0°C - 55°C
Storage Temperature
-15°C - 60°C

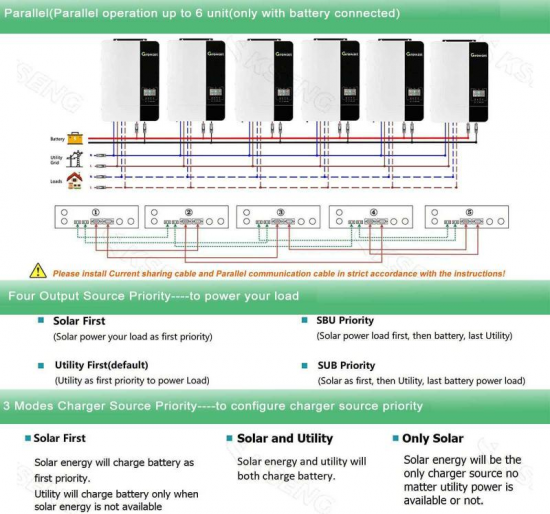

*Four Output Source Priority----to power your load

 Solar First
  (Solar power your load as first priority)
 SBU Priority
  (Solar power load first,then battery,last Utility)
Utility First(default)
  (Utility as first priority to power Load)
SUB Priority
 (Solar as first,then Utility,last battery power load)


*3 Modes Charger Source Priority----to configure charger source priority

 Solar First
   Solar energy will charge battery as first priority.
   Utility will charge battery only when solar energy is not available

 Solar and Utility
   Solar energy and utility will both charge battery.

 only Solar
   Solar energy will be the only charger source no matter utility power is available or not.

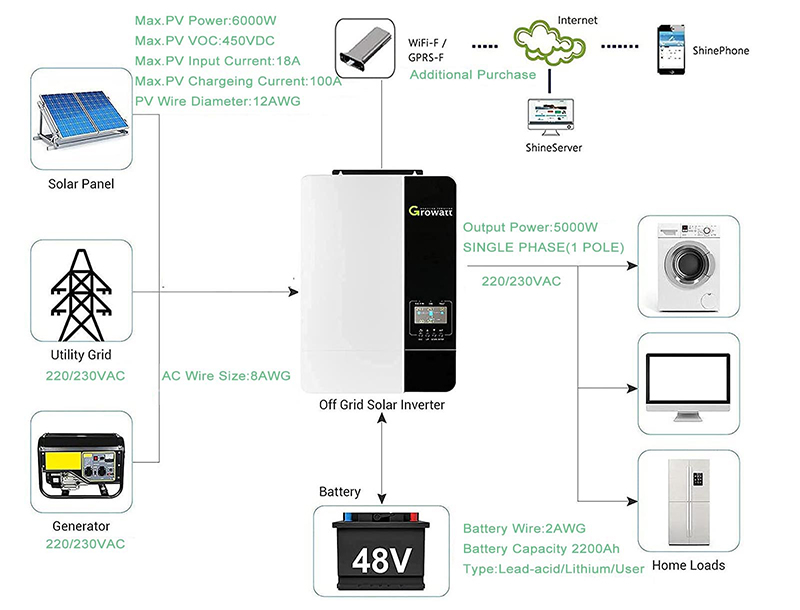

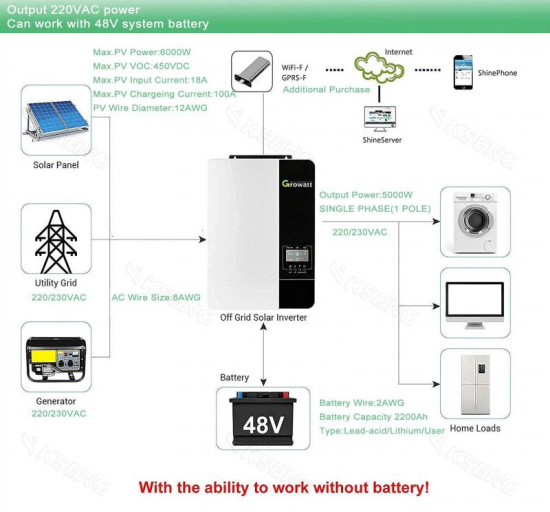

*Output 220VAC power / Can work with 48V system battery


With the ability to work without battery!

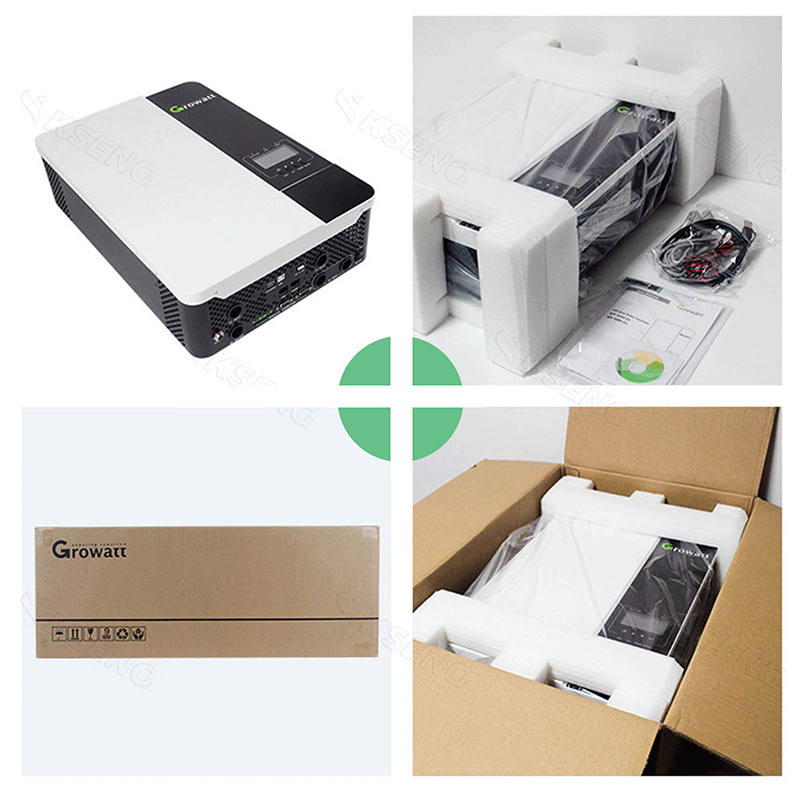

Product packaging

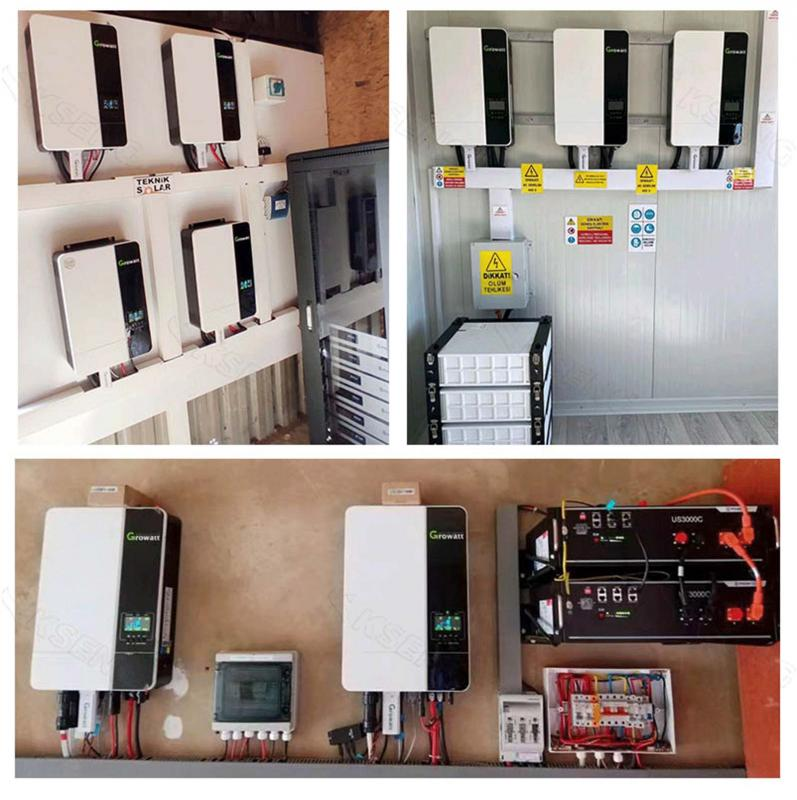

Product Application
