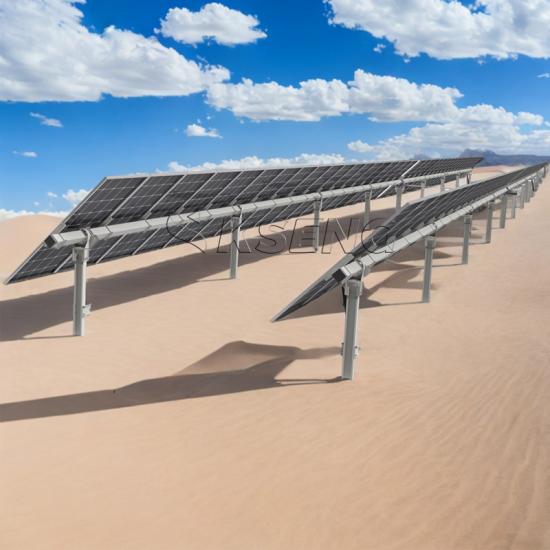

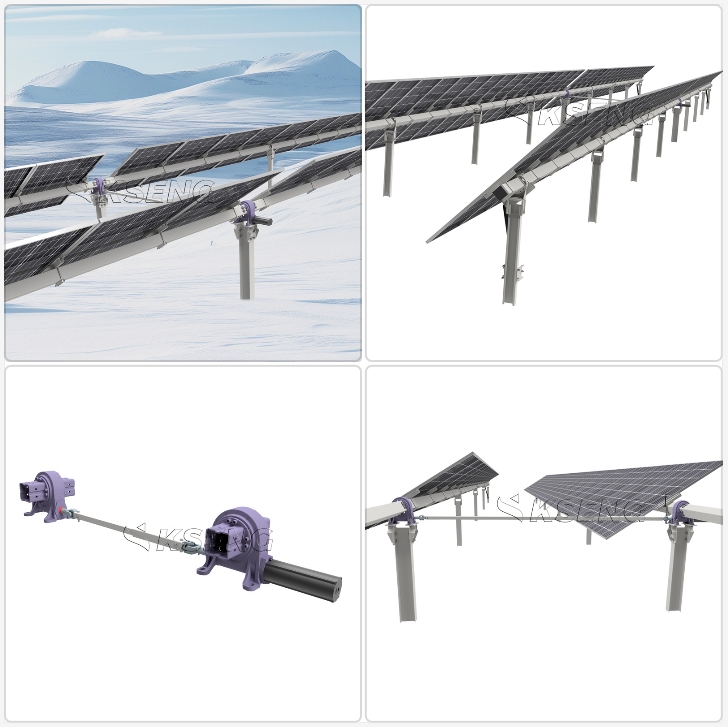

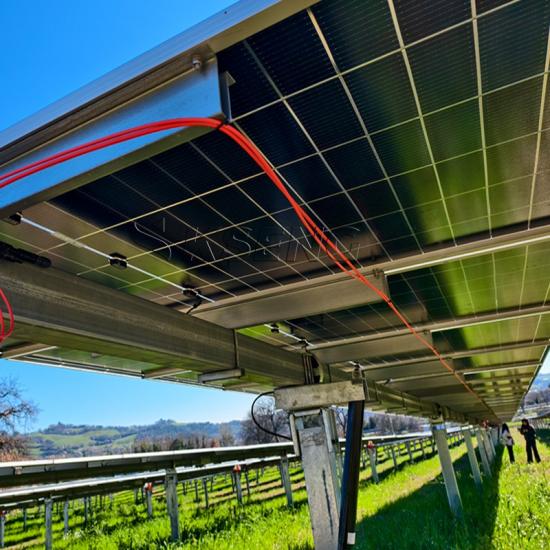

Kseng Latest Product Dual Row Linkage Single Axis Solar Tracker

Kseng’s KST-1P-TL Single Axis Solar Tracker implements distributed actuation architecture, enabling each row to be independently controlled by its own motor with the tracking method “Astronomical algorithm + closed-loop control”. making the system accurate and reliable,real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.

  • Brand:

    Kseng
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Material:

    carbon steel
  • Drive System:

    Slewing Drive
  • Tracking Range:

    ±45°to ±60°
  • Tracking Accuracy:

    ±1°

Kseng KST-1P-TL solar tracking bracket is designed with a tracking mechanism that follow the position of the sun as it moves from east to west.Adopt single-slew-drive, KST-1P-TL allows for large tracking range between ±60°, it's a relatively cost-effective solution with high stability.

solar tracker



Tracking Structure Parameters
System type

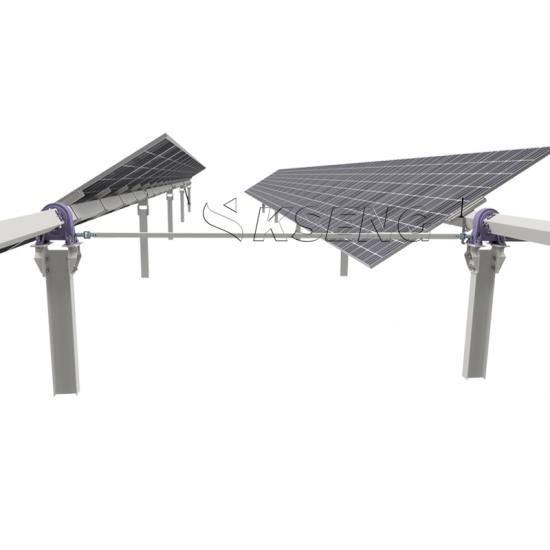

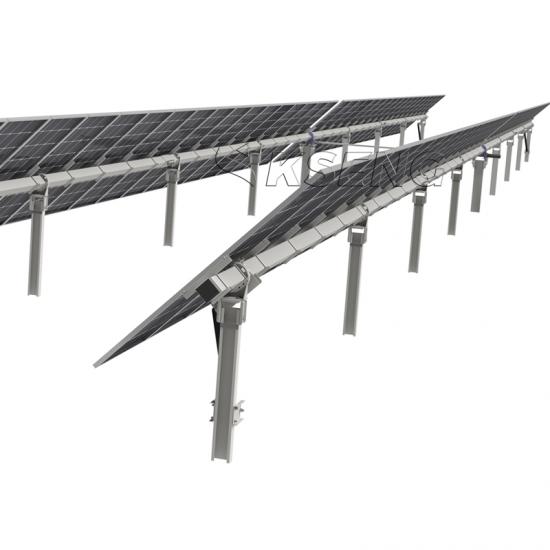

One portrait dual-row linkage single-axis tracker
Module quantity per two rows
120 PCS(2-1Px60)
Tracking range
±60°(Customized according to project)
Tracking accuracy
士1°
Drive method
Slew Drive
Tracking Electrical Parameters
Tracking method
Astronomical algorithm+closed-loop control (AI)
Signal transmission
Wire RS485 or wireless (LoRa)
Power supply
AC-powered or self-powered
Drive method

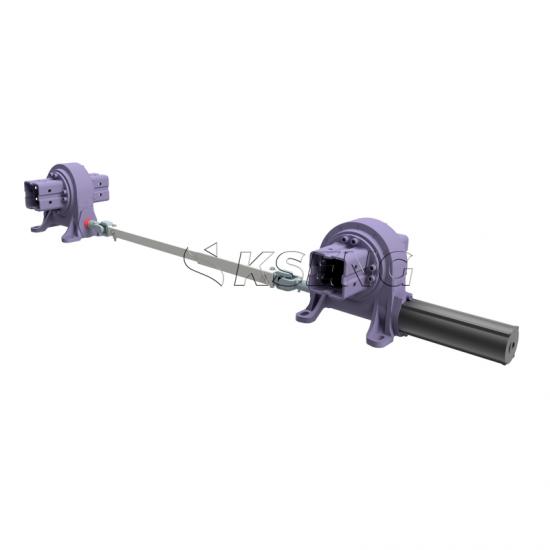

24V DC Motor + Slew Drive
Backtracking
Yes


KST-1P-TL features

1:Cost-effective, stable & efficient system

2:Fully fit for 210 module

3:Al algorithm to maximize power generation

4:Easy installation & maintenance




What is single axis solar tracking system?

A single axis solar tracking system efficiently rotates solar panels along one axis to follow the sun's daily path. By continuously adjusting the angle of the panels to face the sun directly, this system optimizes solar energy capture, resulting in a significant increase in energy production compared to fixed solar installations. This enhanced efficiency makes single axis solar tracking systems a valuable choice for maximizing solar power generation, particularly in large-scale solar projects where space and energy output are key considerations.

Leave A Message
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Submit
Related Products
single axis solar tracker system
KST-1P One Portrait Horizontal Single axis Solar Tracking System
Kseng single-axis solar tracking mounting system is a solar photovoltaic mounting technology that allows solar panels to move along a single axis (usually east-west) in order to track the sun's trajectory, thereby increasing the efficiency of solar energy collection.
Read More
Solar L Foot Mounting Brackets For Tin Roof
Tin Roof L Foot Accessories for Solar Roof Mounting
L feet have been widely used on universal corrugated metal sheet roof.
Read More
carport solar mounting system
Sturdy Aluminum Waterproof Solar Carport Mounting
The Waterproof Aluminum Solar Carport Racking System is a parking shed solution that combines waterproofing features with solar power generation capabilities. This system not only provides shelter for vehicles from the sun and rain, but also generates clean energy through solar panels mounted on top of the carport.
Read More
solar metal roof mounting
Hanger Bolt Solar Mounting System for Metal Roofs
Solar Tin Roof Racking System is an effective way to realize solar energy utilization, especially suitable for those industrial and commercial users with large metal roofs. Through proper design and professional installation, the potential of solar power generation can be maximized. 1.Creative clamp mount by push into rails directly. 2.Special clamp clip could offer adjustable height. 3.Fast and simple installation, wooden rafter and steel purlin options.
Read More
solar ground mount structure
1MW Lightweight Durable Aluminum Solar Ground Mounting Structure
Aluminum solar ground mounting system is a system designed for solar farms, usually made of high-strength aluminum alloys, such as AL6005-T5, a material that provides a lightweight solution while ensuring structural stability and durability.
Read More
Standing Seam Roof Clamp Solar
RF0008 Solar Racking Standing Seam Roof Clamps
Solar standing seam roof clamps securely fasten solar panels to standing seam metal roofs, ensuring stability and durability. Standing Seam Roof Clamps have been widely used on universal corrugated metal sheet roof.
Read More
ground solar mounting structure
Stable Solar Pv Panel Ground Mounting Structure With Concrete Base
The Cement Pier Aluminum Solar Ground Racking System is a solar racking solution that combines the stability of cement piers with the lightweight, corrosion-resistant properties of aluminum alloy for ground-mounted solar power projects of all sizes.
Read More
automatic solar tracking system

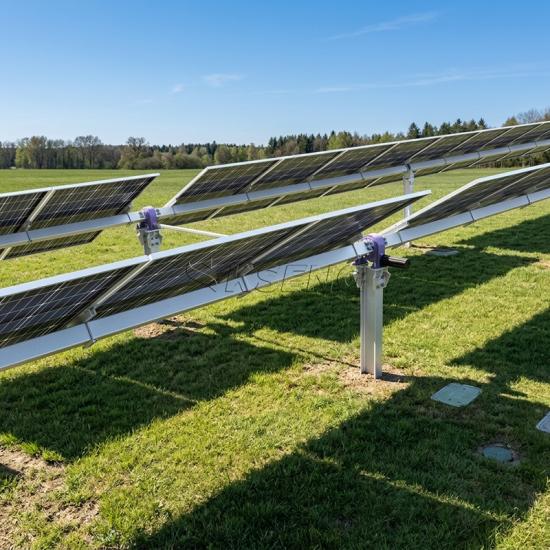

Single post axis tracker solar automatic solar tracking system
