Aluminum Solar Carport Mounting System with Ground Screw

Benefits of carport-mounted solar systems:

1.Solar carports are basically overhead canopies that are designed to cover parking areas and large areas in general. Carports are similar to ground mounted solar system, only they are usually raised much higher to accommodate shaded parking.

2.Our solar carport mounting system use the waterproof structrue and anodized surface treatment aluminum material bracktes.

3.Aluminum solar carport bracket is lightweight, easy transportation, high corrosion resistance and salt tolerance.

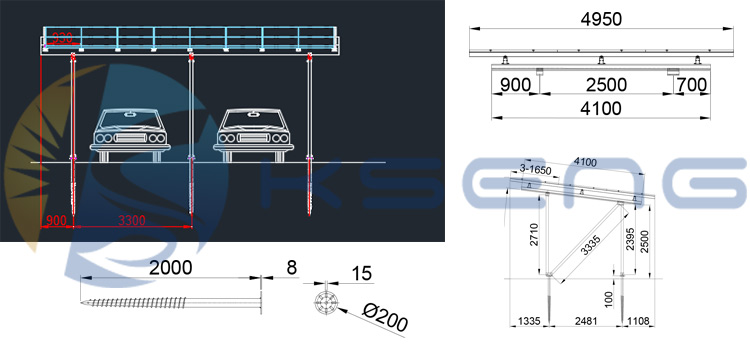

1. Solar panel size: 1650*992*40mm.

2. Array: 3*10(30pcs).

3. Wind speed: 34m/s.

4. Snow: 30cm (JIS C8955 2017).

5. The length of the ground screw pile is for reference only.

FAQ

Q: What are the key benefits of the Commercial & Industrial Solar Carport Racking System?
A: The main advantages include customized design to suit different project needs, optimized land resource utilization, and the provision of installation manuals and system solutions for quick on-site construction and easy maintenance.

Q: How does the system ensure waterproof performance?

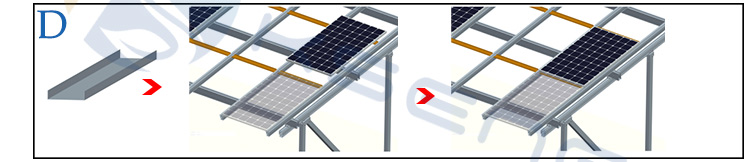

A: Structural waterproofing design with water guiding channels ensures good waterproof performance, lower maintenance cost and longer life.

Q: What are the technical parameters required to install a commercial or industrial solar carport racking system?
A: Technical parameters include installation location, foundation type, mounting angle, wind load, snow load, height above ground, applicable module type, etc. Specific parameters will be customized according to design standards and project requirements.

Q: What is the compatibility of the system?
A: The system can be integrated into the power grid, used off-grid, connected to micro-grid systems, and combined with charging piles for charging, etc. It is highly compatible.

Q: What is the installation process for commercial and industrial solar carport racking systems?

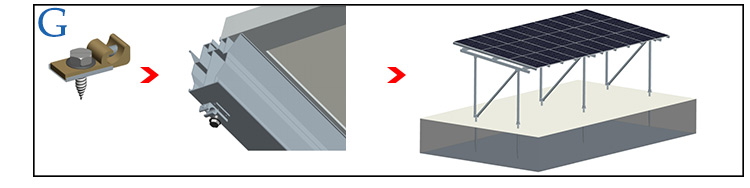

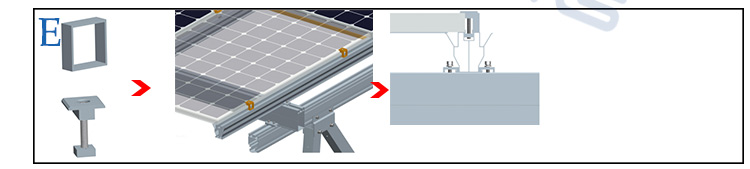

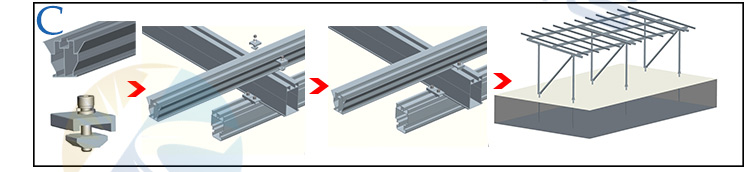

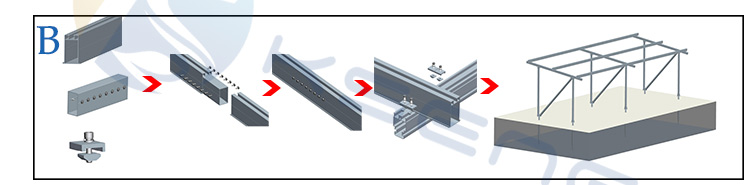

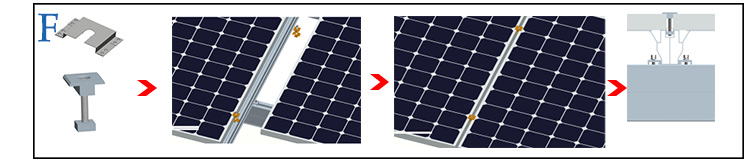

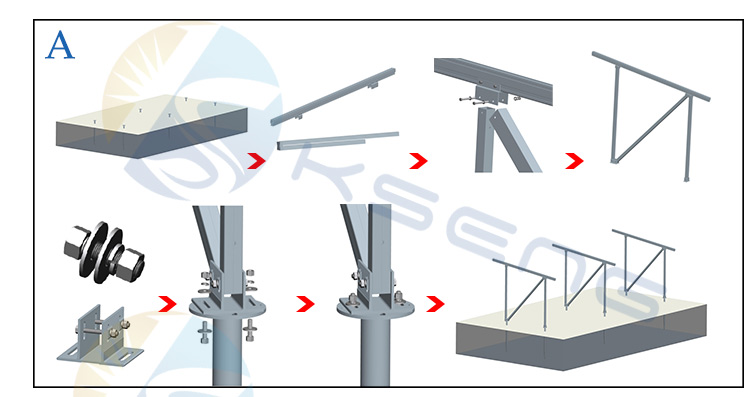

A: The installation process includes foundation preparation, racking assembly, solar panel installation, fixing and electrical system connection. Most of the racking is pre-assembled at the factory and can be installed on-site by simply tightening the bolts.

Q: How is the durability and stability of the system ensured?
A: Materials such as aluminum alloy with oxidized surface and steel with hot-dipped galvanized surface are used to ensure the anti-corrosion performance of the components. Professional mechanical calculations and special software simulate the operation in advance to ensure the stability and safety of the system.

Q: What kind of places are commercial and industrial solar carport racking systems suitable for?
A: It is applicable to a wide range of places, including factory parks, business parks, parking lots, campuses, hospitals, residential areas, etc.

Q: Does the system provide quality assurance?
A: Yes, the system usually comes with a 10-year warranty.
