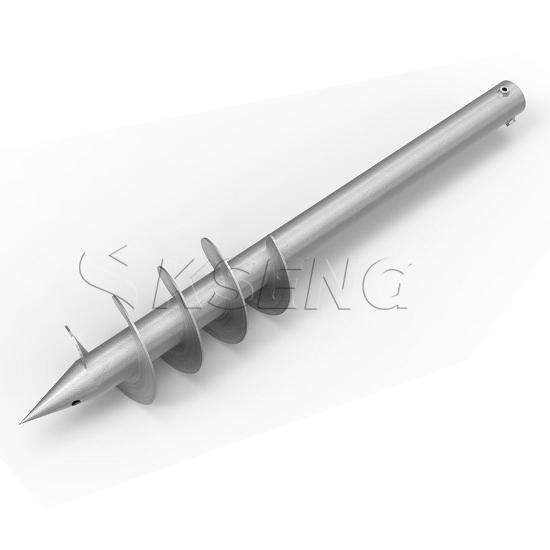

Flange Adjustable Hot Galvanized 4 Blades Solar Ground Screw Anchor

the ground screws are not damaged then they can be used again. As such, ground screws leave behind the same green space that was there before the construction and they leave the ecosystem of the soil intact.

In comparison to concrete foundations, when using ground screws you avoid any unnecessary surface sealing of the soil. The soil ecosystem is not disturbed and it remains intact.

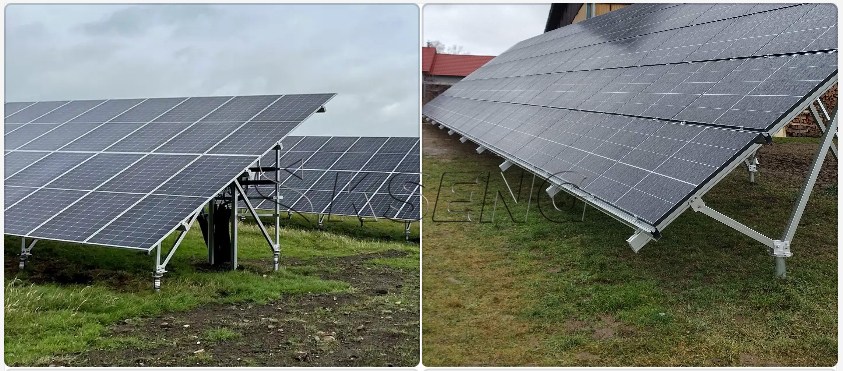

Ground Screw Anchor is the preferred foundation in many applications, such as solar power plants, fences, wooden houses, advertising and traffic systems, urban garden and landscape construction and so on.

Special situations call for special products Ground screws are always a good solution for special construction projects where conventional concrete foundations are no longer an economic selection.

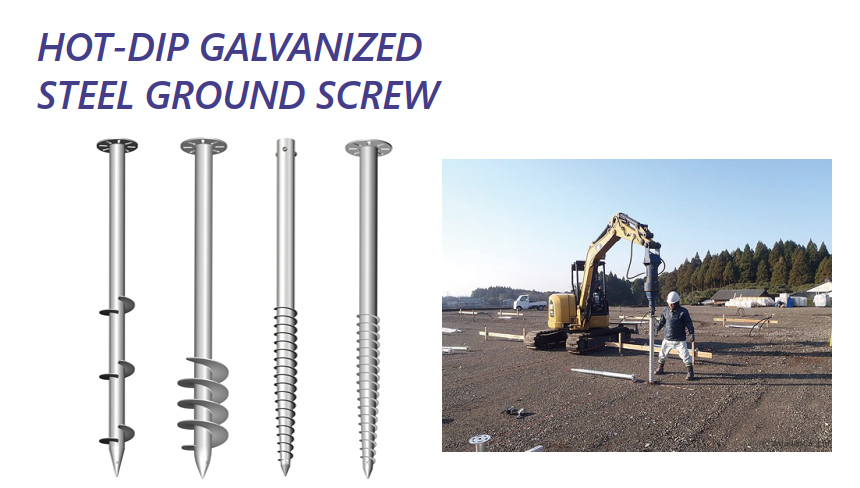

Hot-dip galvanized carbon steel solar ground screw introduction：

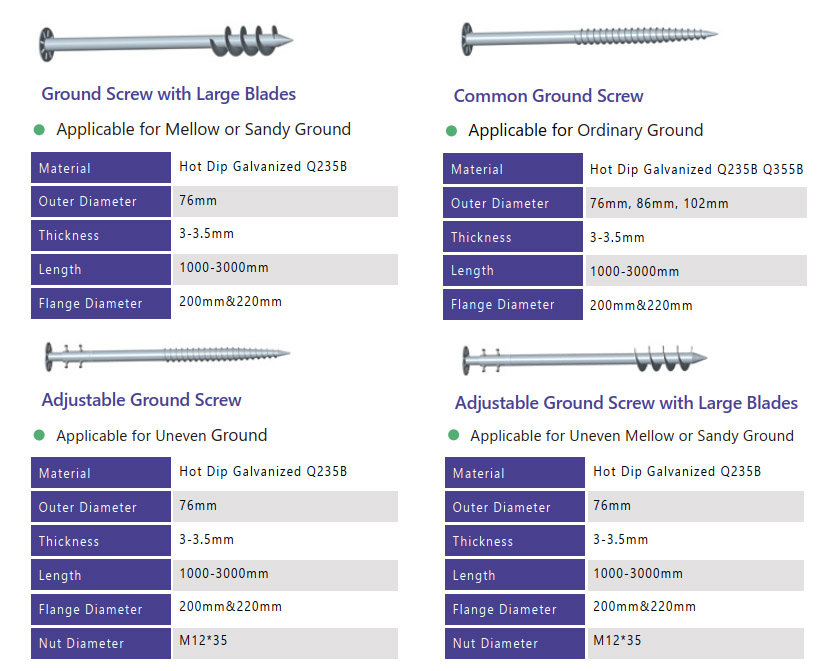

Material: Q235B high quality carbon steel is usually used, which has high strength performance.

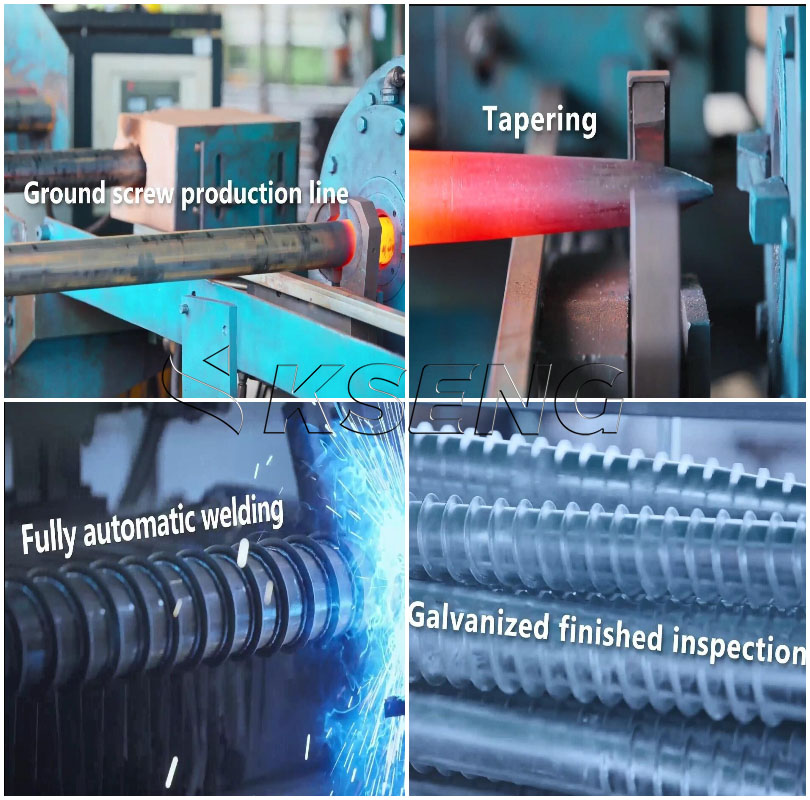

Surface treatment: The surface of carbon steel is hot dip galvanized to effectively prevent corrosion and improve product durability.

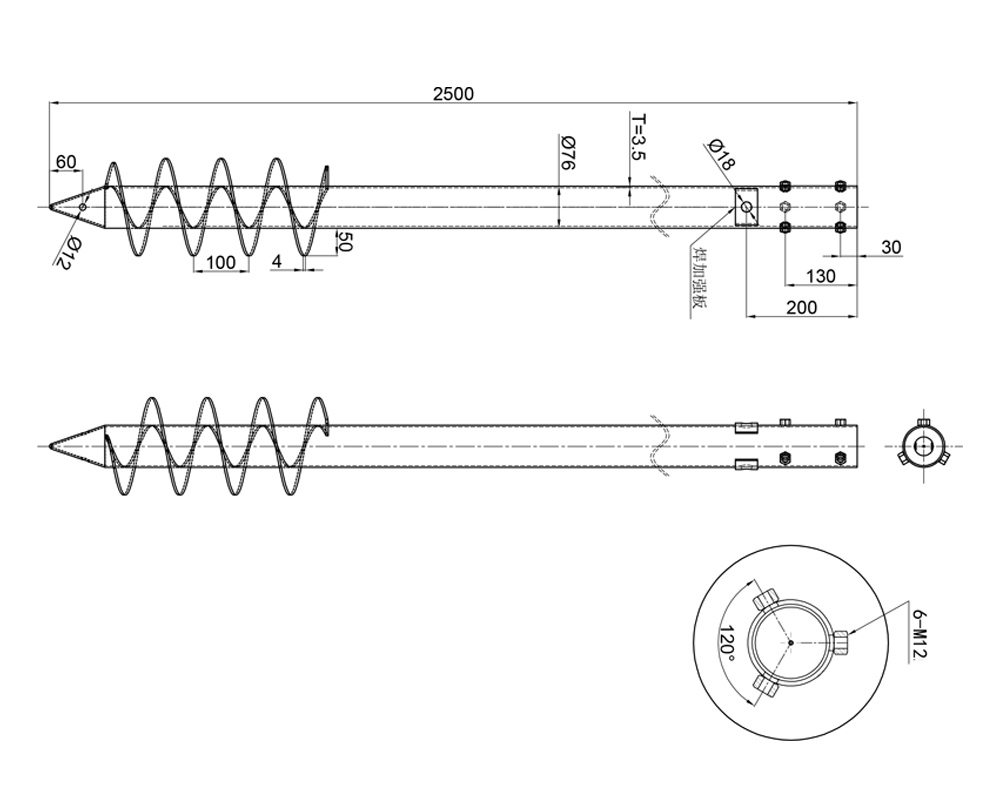

Design: Some ground piles are specially designed, after mechanical testing and software simulation to ensure that the mechanical properties are guaranteed.

Installation: Convenient for on-site construction, some ground piles have pre-embedded bolts through cement piers to simplify the installation process.

Environmental protection: environmentally friendly, recyclable, no need for post-coating or coating, reducing maintenance costs.

Applicability: Suitable for a wide range of soil conditions, from clay to rock, and solar PV projects
