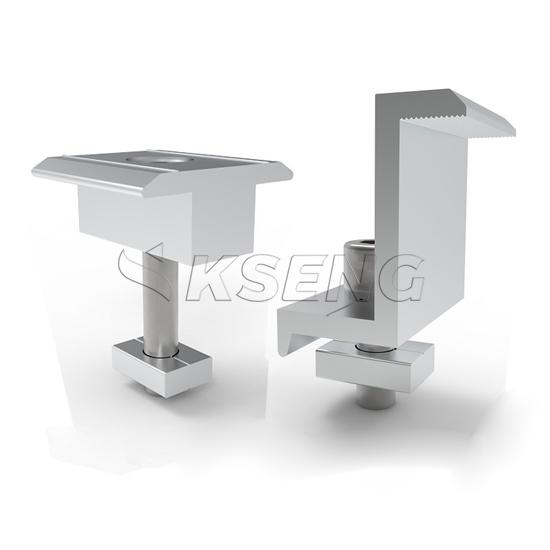

T Shaped Bolt Solar mid clamp and end clamp

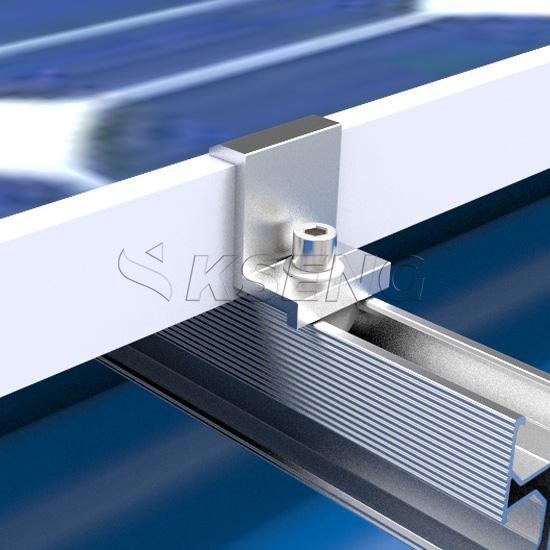

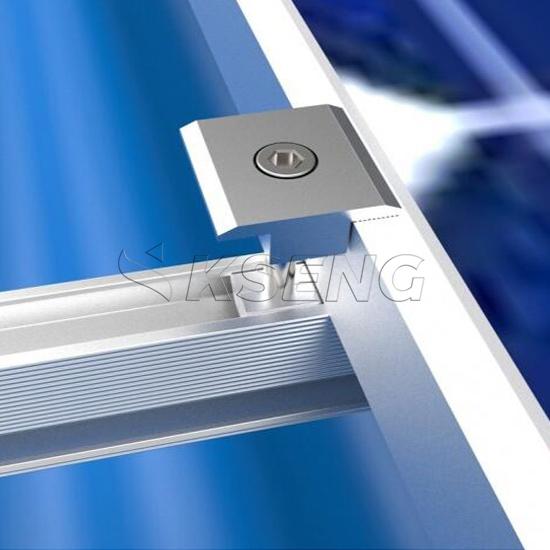

T-Bolt is a kind of fastener used for solar panel mounting systems . Kseng stainless steel fasteners T bolts are used with mid and end clamps to fix the solar panel to the solar rail. It is easy to operate. When Fasten the inter and end clamps, make sure the mark at the bottom of the parallel to the edge to the solar module.

Installation:

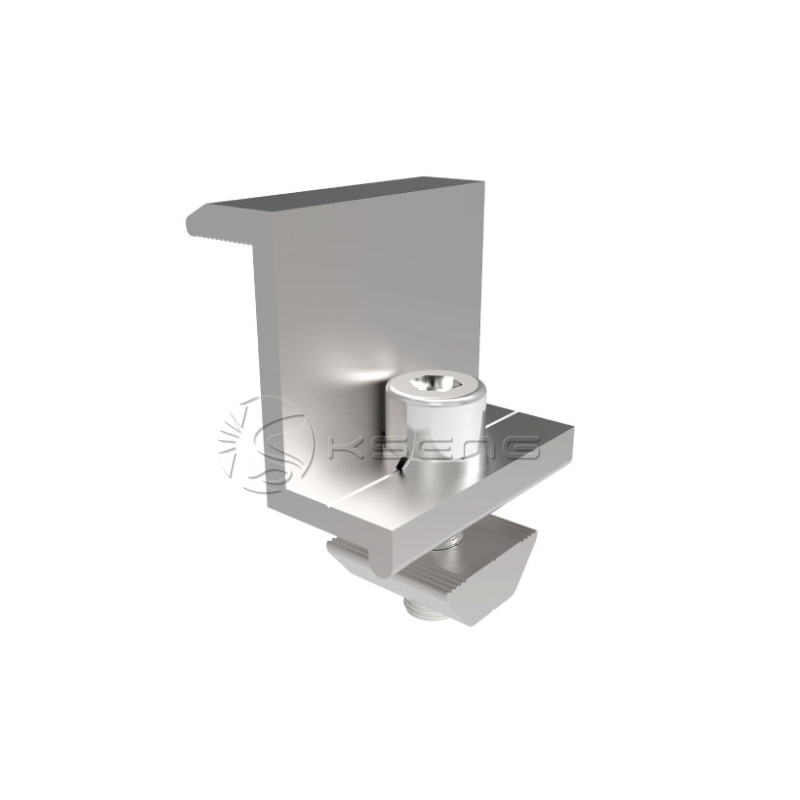

1. End Clamp together with T- bolt;

2. Sliding into aluminum rails;

3. Fasten whole kit with PV module;

4. Done!

FAQ

Q: What is the main function of the solar mid and end clamp?
A: The main function of the side pressure block is to fix the outermost side of the solar module, prevent the displacement of the module, ensure the smooth installation of the module, and meet the requirements of wind resistance, tensile strength and deformation.

Q: What kind of material is usually used for the side pressure block?
A: The side pressure block is usually made of aluminum alloy, which has good corrosion resistance and long service life.

Q: How is the side pressure block installed?
A: The Side Pressure Block is bolted to the frame of the PV module and is used in conjunction with the mounting system to form a stable mounting structure.

Q: What do I need to pay attention to when using the Side Press?
A: When using the solar mid and end clamp, you need to pay attention to ensure that it fits tightly with the module, check whether the bolts are tight, and regularly check its wear and corrosion to ensure the stability and safety of the installation.
