Vertical Structures Solar Farm racking system solar panel Fence ground mounting solar farms mount system in ground

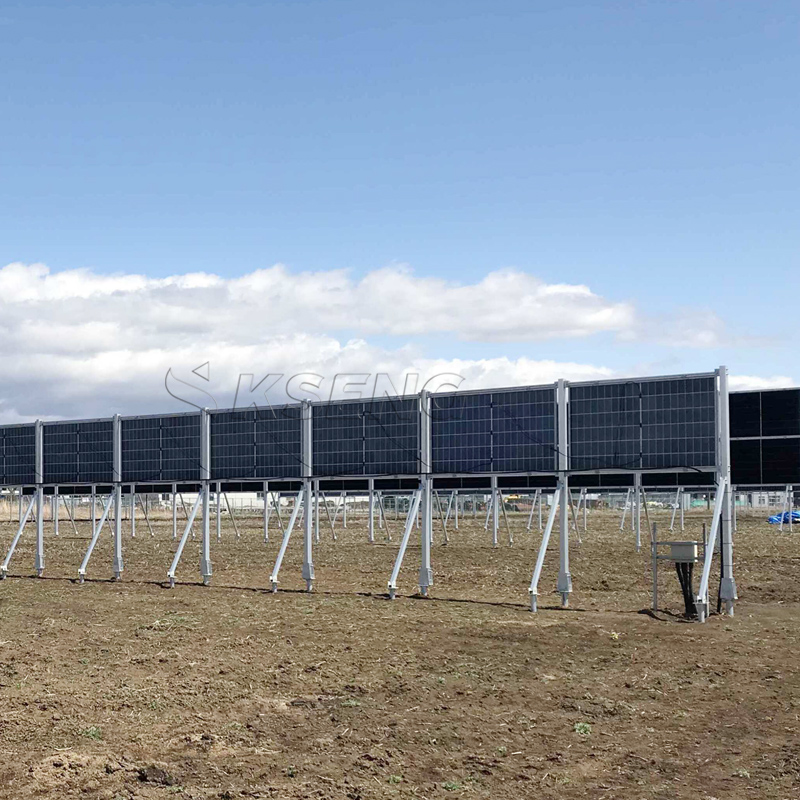

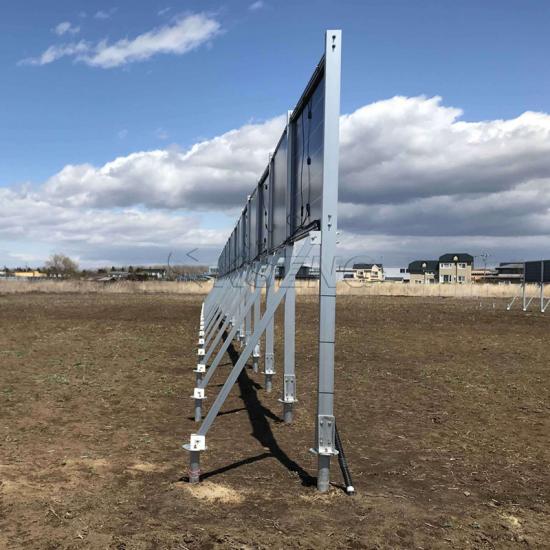

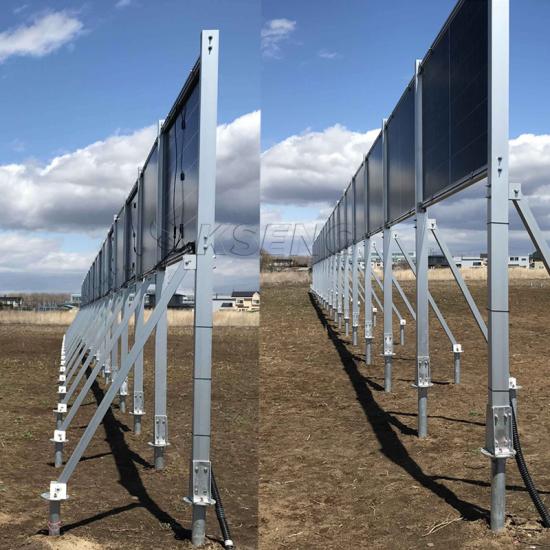

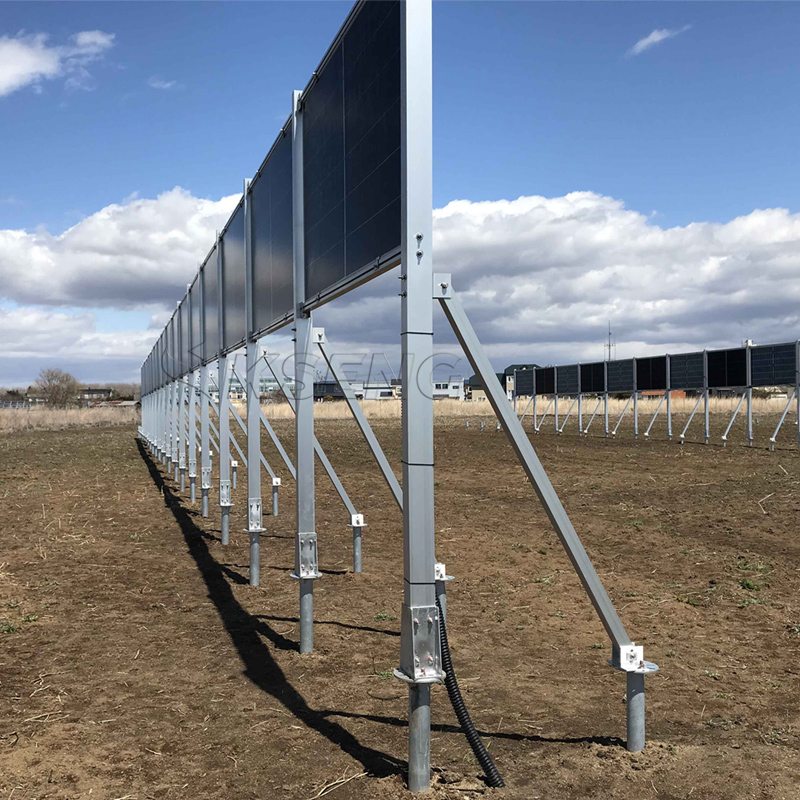

Vertical solar ground mounting system is a kind of mounting structure for ground mounting solar panels, which allows the panels to be mounted at a vertical or near-vertical angle, and is suitable for applications with limited land area and the need to maximize the utilization of space, such as farms, urban environments and parking lots.


  • Brand:

    Kseng
  • Product Origin:

    China
  • Shipping Port:

    Xiamen
  • Material:

    Aluminum 6005-T5 High strength aluminum alloy,
  • Warranty:

    10 Years
  • Service Life:

    25 Years
  • Certification:

    ISO9001/CE/UL/SGS
  • Wind Load:

    216km/h
  • Snow Load:

    1.4Kn/m2

Solar ground mounting system is typically applied on flat open field ground. The concrete base is easy to build regardless of various soil conditions.It is much easier to install. Main components of solar ground mount bracket are high pre-assembled in Kseng`s factory, which save lots of your on site installing time and cost. Components are full sides anodized even for small parts, which has a great anti-corrosion effect and long lifetime.

Benefits of ground-mounted solar systems:

1.Material features with high strength superior corrosion resistance, self-repair, long lasting and easy processing.

2.No need for post-coated or smeared, reduce the cost of rust-proof or  paint repair on site.

3.Conventional specification can be mass-produced to maximum control of production cycle.

4.Use our ground screw, the installation time is significantly shorter, and the installation can be done quickly and effectively without any major preparations being needed.

Material:
 AL 6005-T5 High Strength Aluminum Alloy
Foundation:  Concrete Pile
Standard:  JISC8955-2017 Design Guide on Structures for Photovoltaic Array
Certification:  ISO9001/CE/SGS/UL etc.
Surface Treatment:
 Anodized
Wind Load:  60m/s
Snow Load:  1.4KN/M2
Warranty:  10 Years
Service Life:  25 Years
Applicable Module:  Framed or Frameless
Module Orientation:  Portrait or Landscape

Introduction and some Frequently Asked Questions (FAQ) about the Vertical Solar Ground Mount System:

System Introduction:
Design Versatility: Vertical racking systems can be designed in different shapes and sizes to accommodate different installation needs and site conditions.


Space Utilization: This type of system can maximize the number of solar panels installed in a limited space, especially in areas with restricted land use.


Easy maintenance: Vertically mounted panels are easily accessible for cleaning and maintenance.


Structural Stability: Racking structures are often designed to be very stable to withstand wind and other environmental factors from different directions.


Customization: The racking system can be custom designed according to the specific needs of the project.
