Balkonkraftwerk Plug And Play Balcony Solar System

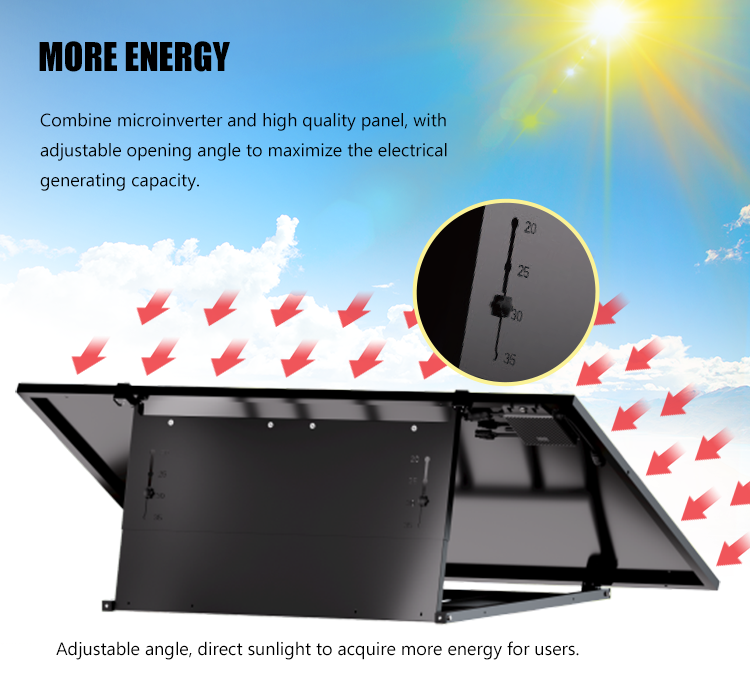

Kseng easy solar kit is a plug and-play balcony solar system composed of solar panel, micro inverter and angle-ad justable bracket, which can be installed by yourself. Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.
  • Brand:

    Kseng
  • Product Origin:

    XIAMEN
  • Material:

    Aluminum Alloy
  • Warranty:

    10 years
  • Service Life:

    25 years
  • Certification:

    ISO9001/CE
  • Application:

    garden,flat roof


Overseas Warehouse


Easy Solar Kit System

Kseng easy solar kit is a plug ‒and-play system composed of solar panel, micro inverter and angle-ad justable bracket, which can be installed by yourself. Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.

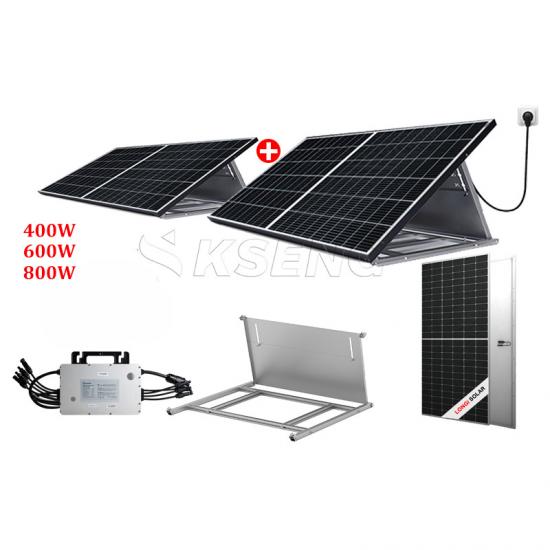

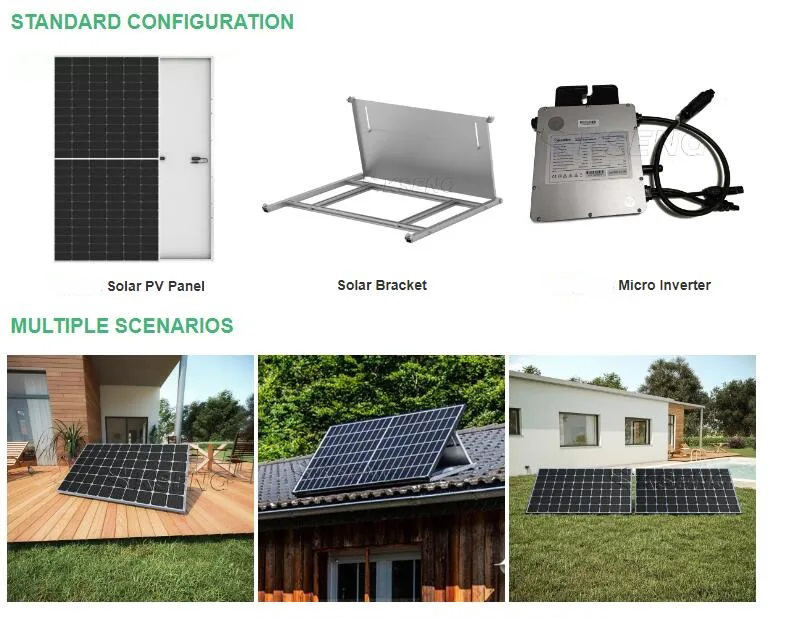

Main Components:
Solar panels: high-efficiency photovoltaic panels for converting solar energy into electricity.
Racking: Adjustable racking system for fixing solar panels and adapting to different balcony configurations.
Plug and Play Interface: Simplified electrical interface that allows the user to quickly connect the solar panels to the home grid or to an energy storage device.
Energy storage device (optional): Battery system for storing the electricity generated by the solar panels.
Monitoring system: for real-time monitoring of the solar system's power generation efficiency and status.


Advantages

1.Output Power Up To 500 VA
2.
Modular Design, No Debugging And Easy Installation
3.
Various Scenes, Roof, Balcony and Garden
4
.App Cloud Monitoring, MPPT Controller To Optimize Power Generation Effiffifficiency
5.
12-Year Global Warranty


Products Description

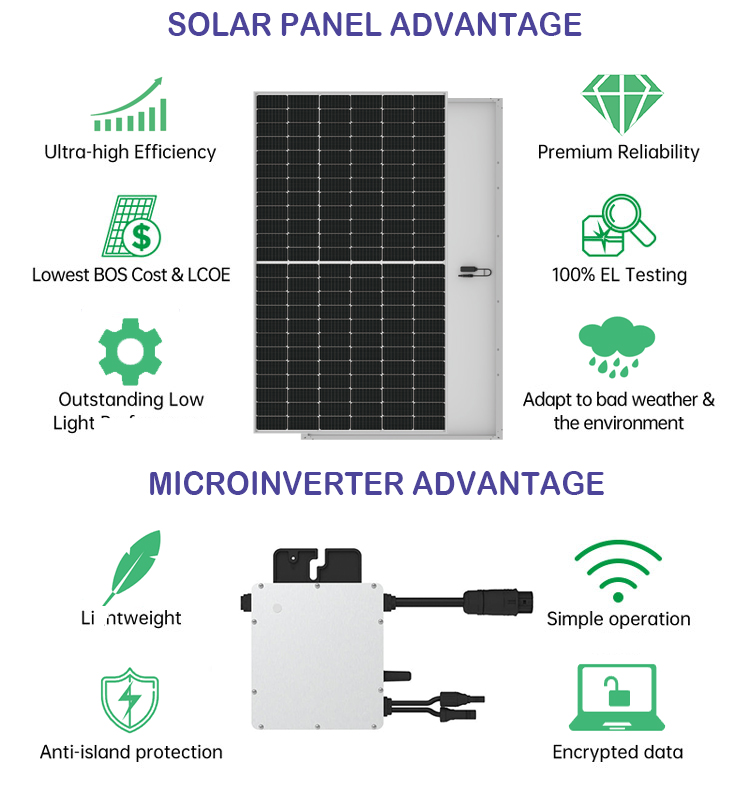

Solar PV Panel
Power:

415-435W

Module efficiency:
21%
Current at maximum power:
13.12A
Glass:
Single glass, 3.2mm coated tempered glass
Frame:
Anodized aluminum alloy frame
Dimension:
1722 X 1134 X 30 mm
Weight:
20.8 kg
Micro Inverter
Recommended module power:
320 to 540 + W
Maximum Input current:
12.5 A
Rated output power:
400VA
Rated output current:
1.82 /1.74/1.67A
Output voltage/range:
220土10/ 180-275V
Dimensions:
182 X 164 X 30 mm
Weight:
1.75 kg
AC Extension Cable
Length of Cable:
2/3/5/ 10 m optional
Rated Voltage:
AC 230 V
Certificate:
VDE, CE
General Parameter
Environment protection rating:
IP67
Operating ambient temperature range:
-40to 60 °C
Relative humidity:
0 - 100 %




FAQ
Q: Is this system suitable for all types of balconies?
A: Most types of balconies are suitable, but the structural strength of the balcony and its exposure to sunlight need to be taken into consideration.

Q: Do I need special tools or skills to install this balcony solar system?
A: Usually no special tools or skills are required, but the user should ensure that the installation guidelines are followed to ensure safety.

Q: How often does the system require maintenance after installation?
A: Maintenance needs are low, but it is recommended that the solar panels be cleaned regularly to maintain optimal performance.

Q: How resistant is this system to harsh weather conditions?
A: The system is designed to be weatherproof, but extreme weather conditions may require additional measures.

Q: Can this system be easily moved if I move?
A: Yes, the plug and play design allows the system to be easily disassembled and reassembled.
