Easy Solar Kit Universal Adjustable Angle Solar Panel Wall Mount Bracket

Easy Solar Kit Universal

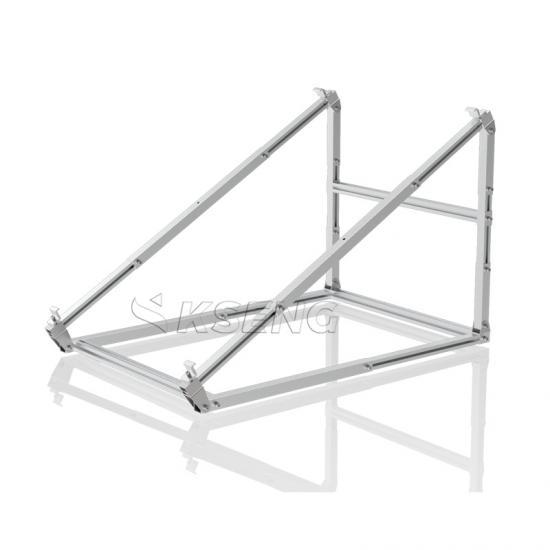

The angle ‒adjustable solar mounting bracket, developed for achieving good combination with solarkit, which can be installed at flat ground or roof, raillings, balcony and garden. It’s much flexible with adjustable tilt range between 30°~50°to get more energy.

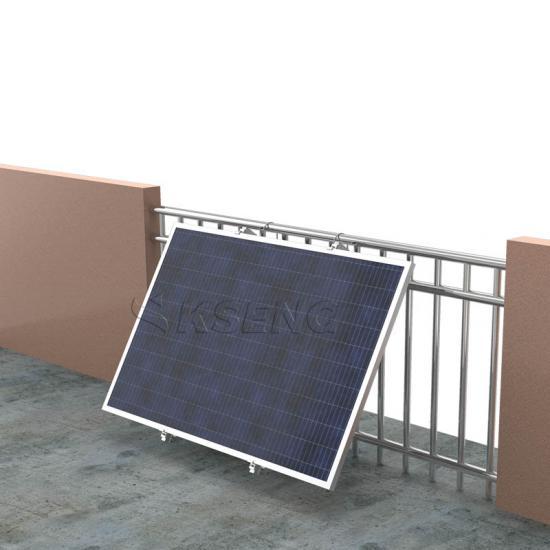

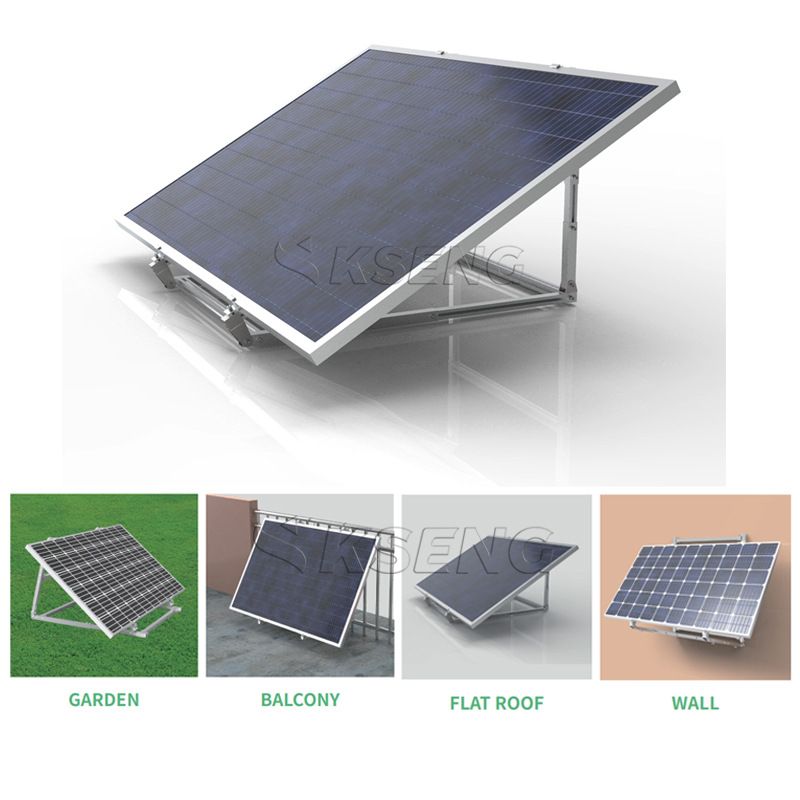

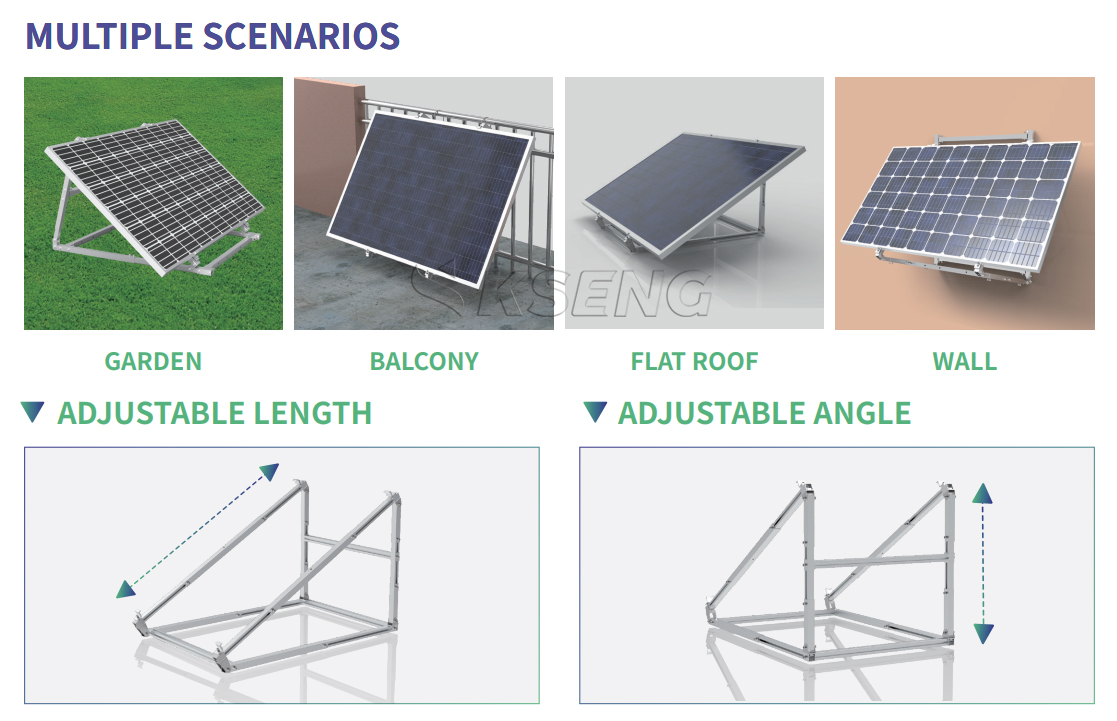

*Adapt to multiple scenarios: garden, balcony, railing, walls and etc.

*Modular design with plug and play connection, quick and easy installation

*Adjustable angle manually to adjust the PV module angle for more energygeneration.

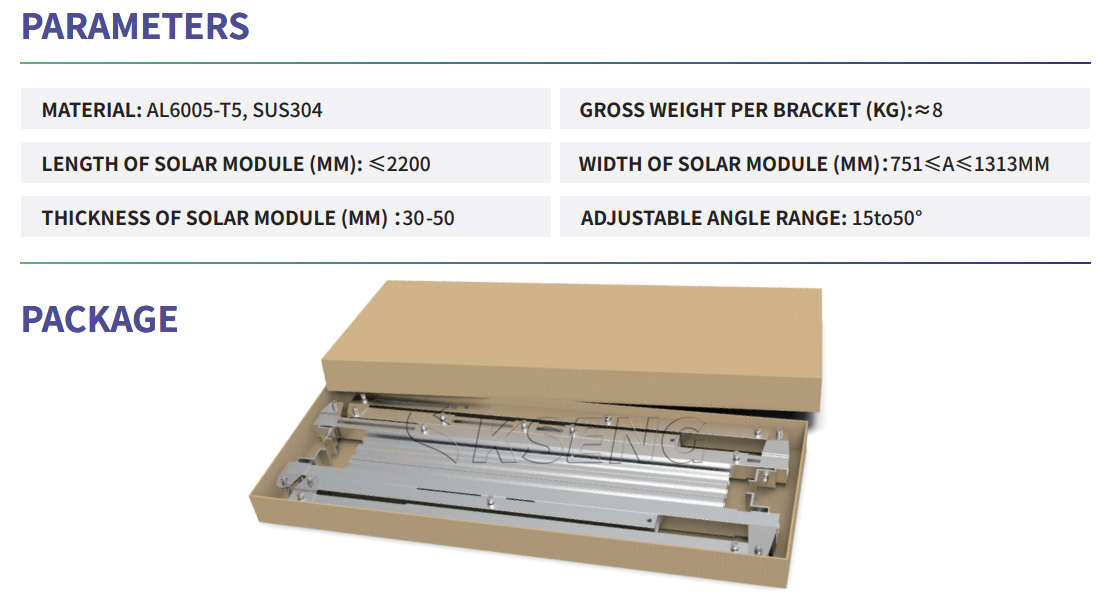

Product Name	Easy Solar Kit Universal Solar Panel Mounting Brackets Ground Railing Wall Installation for Solar Mounting System
Material	AL6005-T5, SUS304，EPDM
Standard	AS/NZS 1170
Gross weight per bracket(KG)	8
Length of solar module(MM)	≤2200
Width of solar module(MM)	751≤A≤1313MM
Thickness of solar module(MM)	30-50
Adjustable angle range	15~50°
Certificate	ISO9001 , CE,  etc
Application	garden, balcony, railing, walls and etc.
Warranty	10 Years Warranty, Over 20 Years Service Life

FAQ

Q: What are the structural requirements for a balcony with this system?
A: The balcony needs to have sufficient load-bearing capacity and be structurally stable to support the weight of the racking system and the panels.

Q: What is the power generation efficiency of the system?
A: The power generation efficiency is affected by factors such as the area of the panels, mounting angle, geographical location and sunlight conditions. The adjustability of the bracket helps to optimize the power generation efficiency.

Q: What kind of maintenance is required for Kseng Solar Aluminum Balcony Racking System?
A: Maintenance is relatively simple and consists of regular cleaning of the panels and checking the stability and tightness of the mount.

Q: Is the system suitable for all types of balconies?
A: The system is designed for a variety of applications, but may need to be adapted to the size and structure of a specific balcony.

Q: How cost effective is the system?
A: Kseng Solar Aluminum Balcony Racking System is usually cost effective due to the aluminum alloy material and easy installation design.
