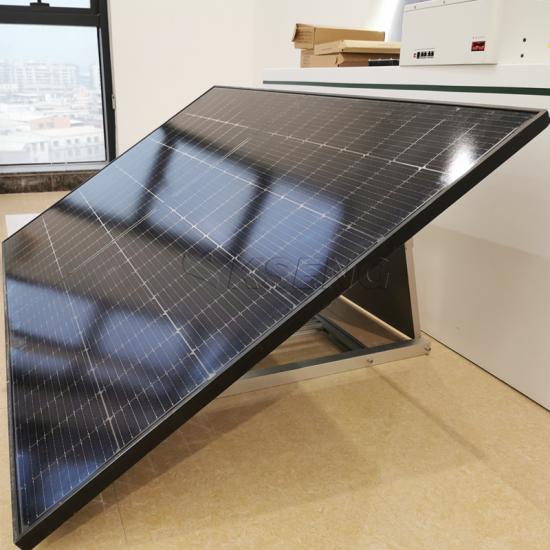

European Warehouse Easy solar kit 400W Plug And Play Solar System All In One Solution Micro balkonkraftwerk Solar System

The Plug & Play Solar Balcony System is a solar power solution designed for home or commercial balconies that allows users to easily install solar panels on their balcony and supply power to the home grid through a simple connection. The Plug & Play Solar Balcony System is an environmentally friendly energy solution that helps to reduce dependence on traditional energy sources.
  • Brand:

    Kseng
  • Product Origin:

    XIAMEN
  • Material:

    Aluminum Alloy
  • Warranty:

    10 years
  • Service Life:

    25 years

Overseas Warehouse



Easy Solar Kit System

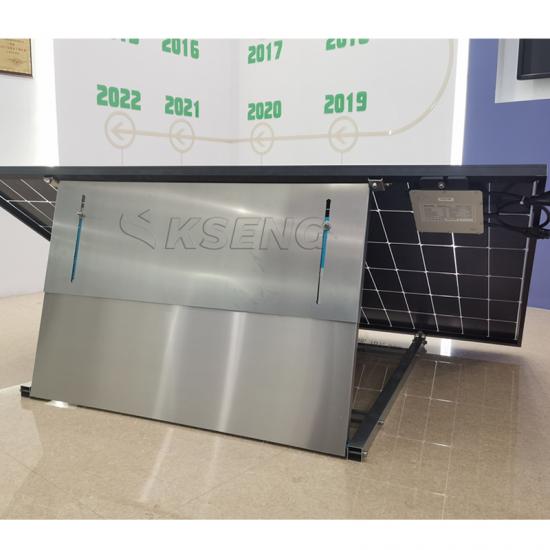

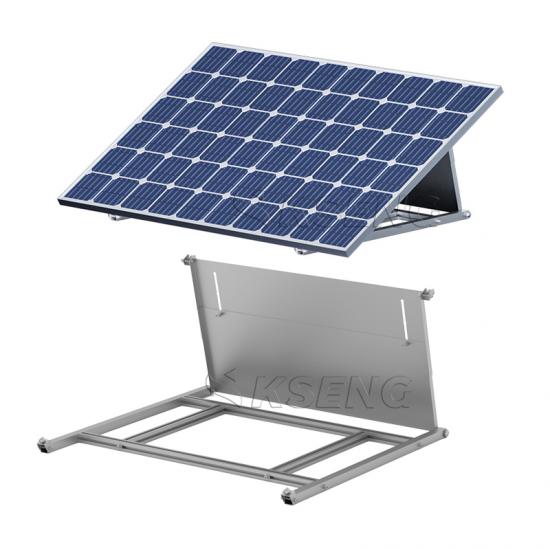

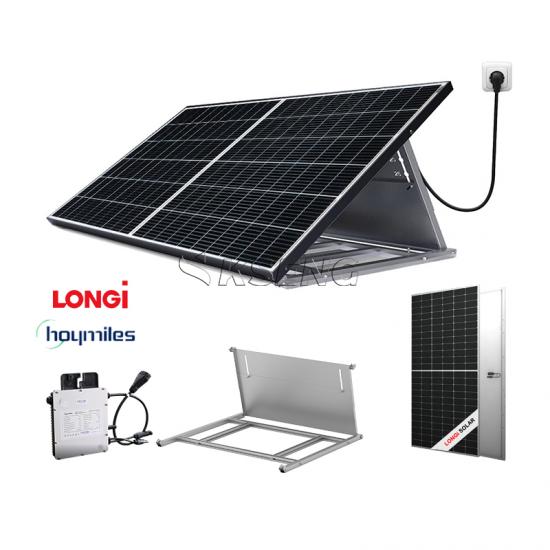

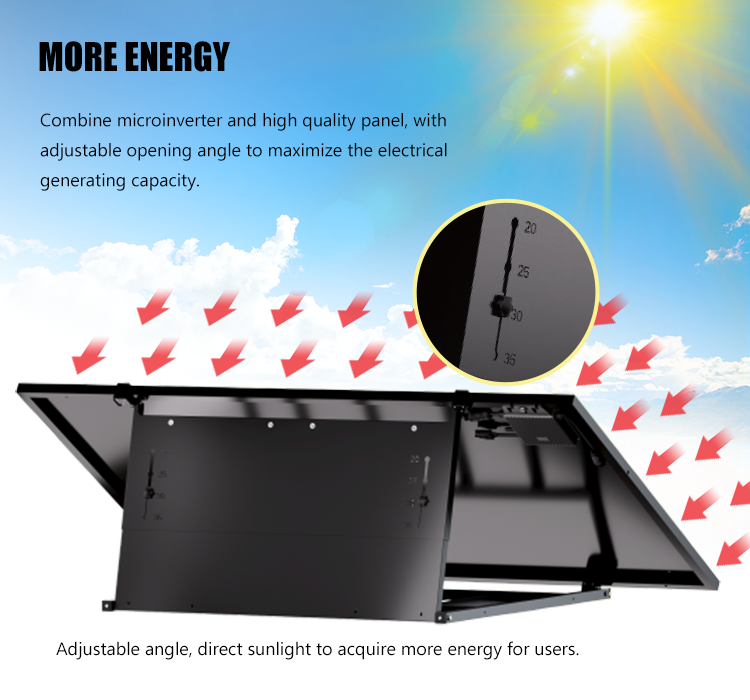

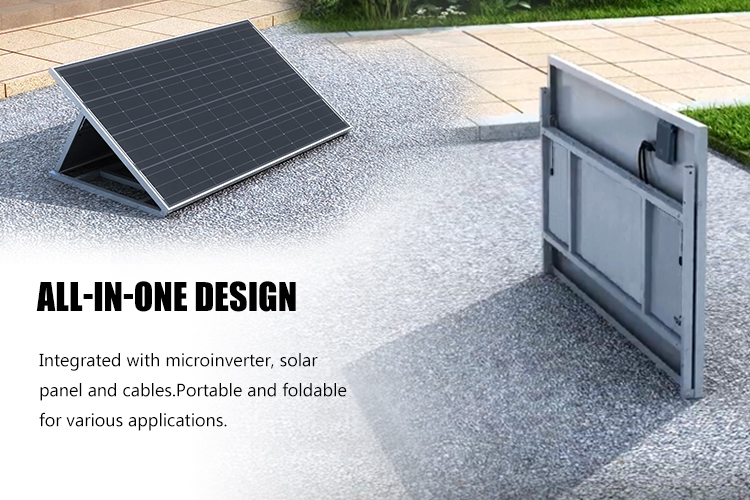

Kseng easy solar kit is a plug ‒and-play system composed of solar panel, micro inverter and angle-ad justable bracket, which can be installed by yourself. Modular design without extra commission enables quicker and easier installation, the angle of the bracket can be adjusted to obtain the maximum power generation.



Advantages

1.Output Power Up To 500 VA
2.
Modular Design, No Debugging And Easy Installation
3.

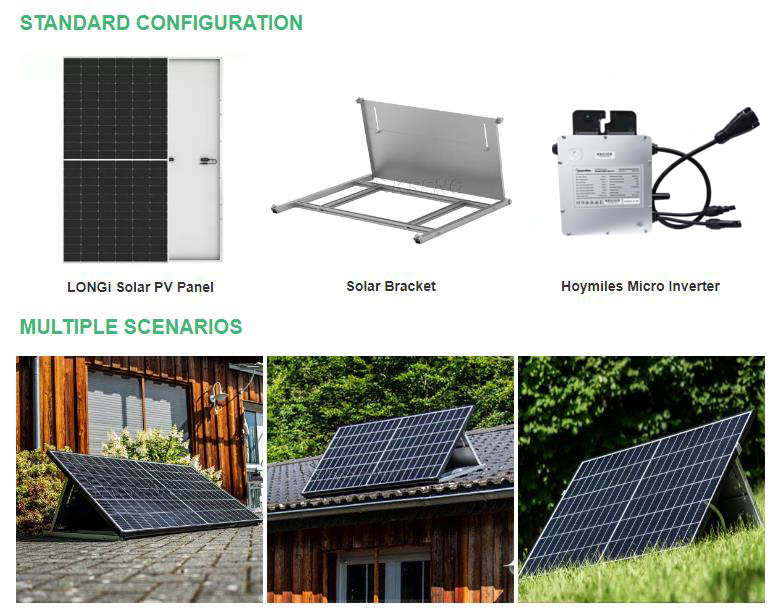

Various Scenes, Roof, Balcony and Garden
4
.App Cloud Monitoring, MPPT Controller To Optimize Power Generation Efficiency
5.
12-Year Global Warranty


Products Description



Solar PV Panel
Power:

415-435W

Module efficiency:
21%
Current at maximum power:
13.12A
Glass:
Single glass, 3.2mm coated tempered glass
Frame:
Anodized aluminum alloy frame
Dimension:
1722 X 1134 X 30 mm
Weight:
20.8 kg
Micro Inverter
Recommended module power:
320 to 540 + W
Maximum Input current:
12.5 A
Rated output power:
400VA
Rated output current:
1.82 /1.74/1.67A
Output voltage/range:
220土10/ 180-275V
Dimensions:
182 X 164 X 30 mm
Weight:
1.75 kg
AC Extension Cable
Length of Cable:
2/3/5/ 10 m optional
Rated Voltage:
AC 230 V
Certificate:
VDE, CE
General Parameter
Environment protection rating:
IP67
Operating ambient temperature range:
-40to 60 °C
Relative humidity:
0 - 100 %



FAQ

Q: What is the installation process of Plug & Play Solar Balcony System?
A: The installation process is usually very simple. Users just need to follow the instructions to fix the bracket on the balcony, then place or stick the panels onto the bracket and connect the electrical wiring.

Q: What are the structural requirements of a balcony for this type of system?
A: The balcony needs to have enough space and load-bearing capacity to support the weight of the solar panels and the racking.

Q: What is the power generation efficiency of the system?
A: The power generation efficiency is affected by the area of the panels, the installation angle, the geographical location and the sunlight conditions.

Q: What kind of maintenance does the Plug & Play Solar Balcony System require?
A: Maintenance is relatively simple and consists of regular cleaning of the panels and checking the electrical connections.

Q: Is the system suitable for all types of balconies?
A: Systems are designed to be versatile, but may need to be adapted to the size and structure of a particular balcony.

Q: How cost-effective is the system?
A: The initial investment is relatively low and in the long term the system can be economically beneficial through savings in electricity bills and possible income from electricity sales.
