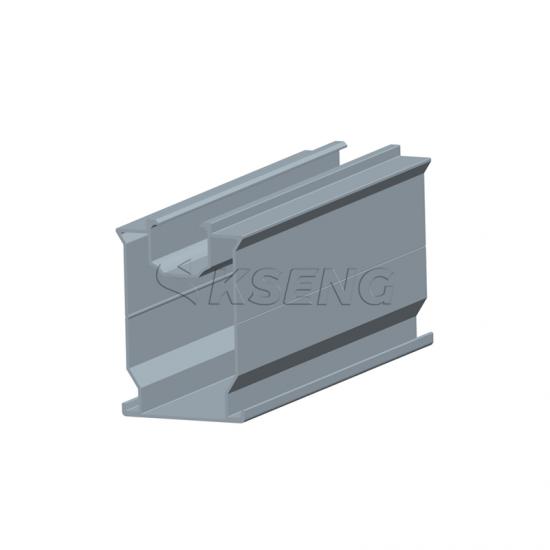

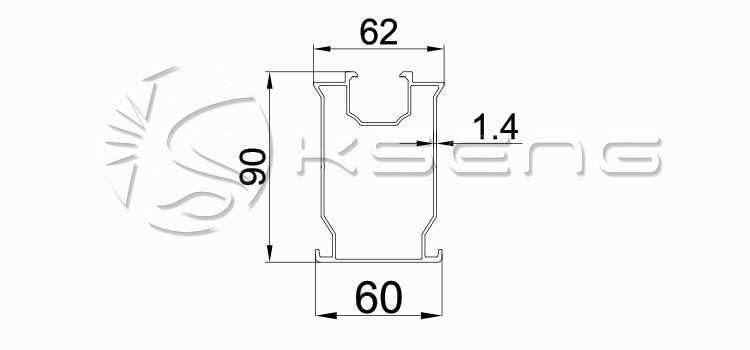

R004 Solar Ground Mount Rail

The solar rail is made of high strength anodized extrusion aluminum alloy,Aluminium boasts one of the highest recycling rates of any metal.

The solar mount rails belong to common type, The upper slot of the solar rail is to the use of a common solar panel clamp to secure solar panel.

The bottom of the rail is firmly fixed to solar beam through solar rail clamp.

 It is for solar aluminum profile rail, length=2100mm, 4200mm is our standard length, what's more, customized of solar mounting rail is welcome, we make make it as per your request.

Features:

1.The solar rails are Large, high strength, span can be enlarged.

2.High corrosion resistance, salt tolerance.

3.Lightweight, easy transportation and installation, safe construction.

4.It is durable and recyclable.

5.Our factory directly delivery with fast delivery.

6.Can be cut in cut to size as mounting projects .

An introduction and some Frequently Asked Questions (FAQ) about ground level aluminum solar rails for solar mounting systems:

Introduction:
MATERIAL: Ground level aluminum rails are usually made of high-strength aluminum alloy Al6005-T5, which is lightweight and has high strength.

Anti-corrosion treatment: Aluminum rails are anodized to provide additional corrosion resistance and durability.

Design Flexibility: The rail system can be adapted to different installation needs and terrain, providing excellent adaptability.

Installation simplicity: The quick-mount structure simplifies the construction process, eliminating the need for on-site machining and making construction easy.

Load-bearing capacity: Designed to withstand certain wind speed and snow load, for example, wind speed up to 60m/s, snow load up to 1.4KN/m².

Environmentally friendly: aluminum alloy material is recyclable and environmentally friendly.

Lifespan: Typically offers up to 25 years of service life and comes with a 10-year quality guarantee
