Brand:
KsengProduct Origin:
XIAMENMaterial:
Aluminum 6005-T5Warranty:
10yearsService Life:
25 yearsCertification:
ISO/CEApplication:

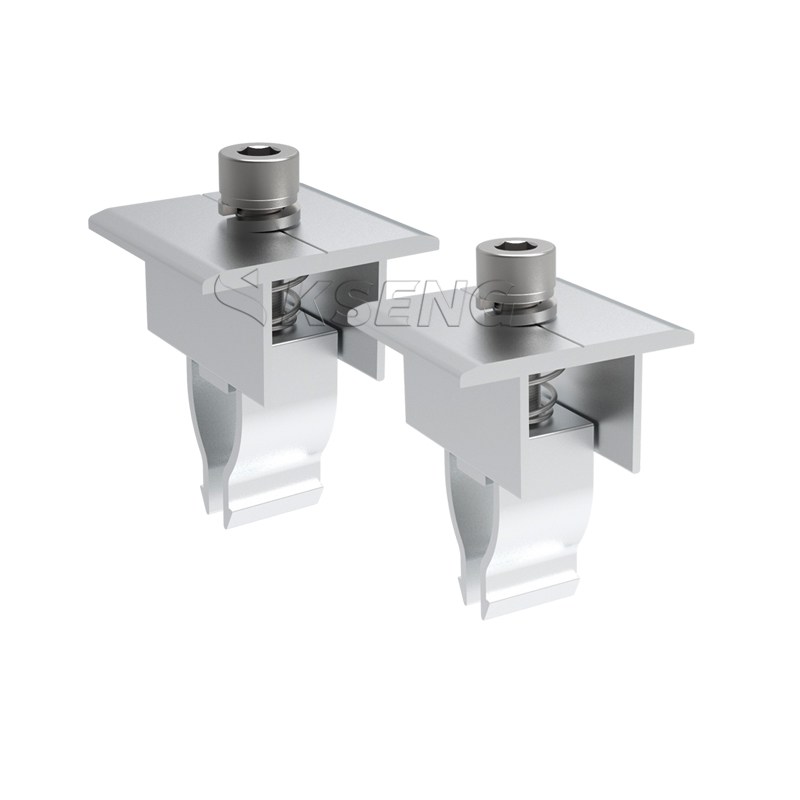

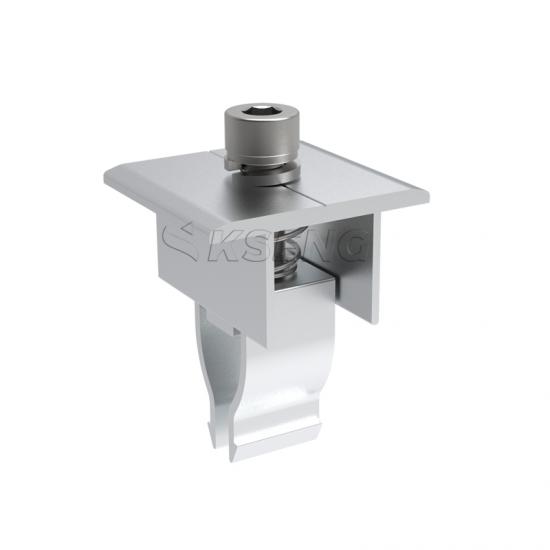

solar panel clampThe Solar Mid Clamp is a key component of the PV mounting system, used to secure adjacent solar PV panels to ensure stability and alignment on the mounting structure
Positioning the PV panels: Place the first PV panel on the mounting rail and secure it with the End Clamp.
Install the Center Clamp: Place the Center Clamp between the edge of the installed PV panel and the next PV panel, making sure it is aligned with the rails.
Tighten Clamp: Tighten the Center Clamp with the appropriate tool to ensure that the two panels are securely fastened.
Repeat: Continue installing the remaining panels until the entire array is secured.
Advantages:

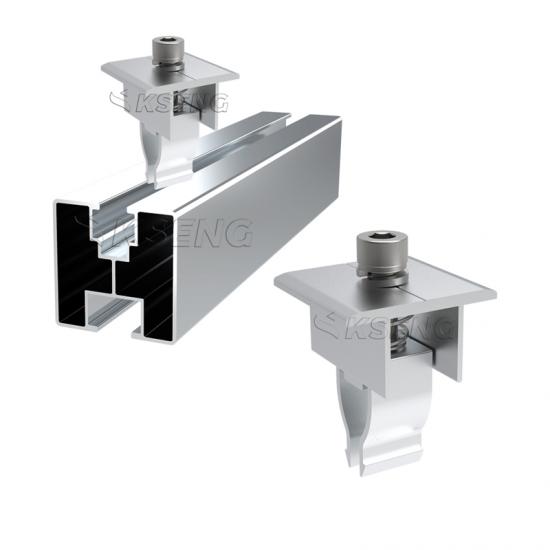

1. Creative clamp mount by push into rails directly
2. Special clamp clip could offer adjustable height
3. Fast and simple installation, precise adjust height for roof

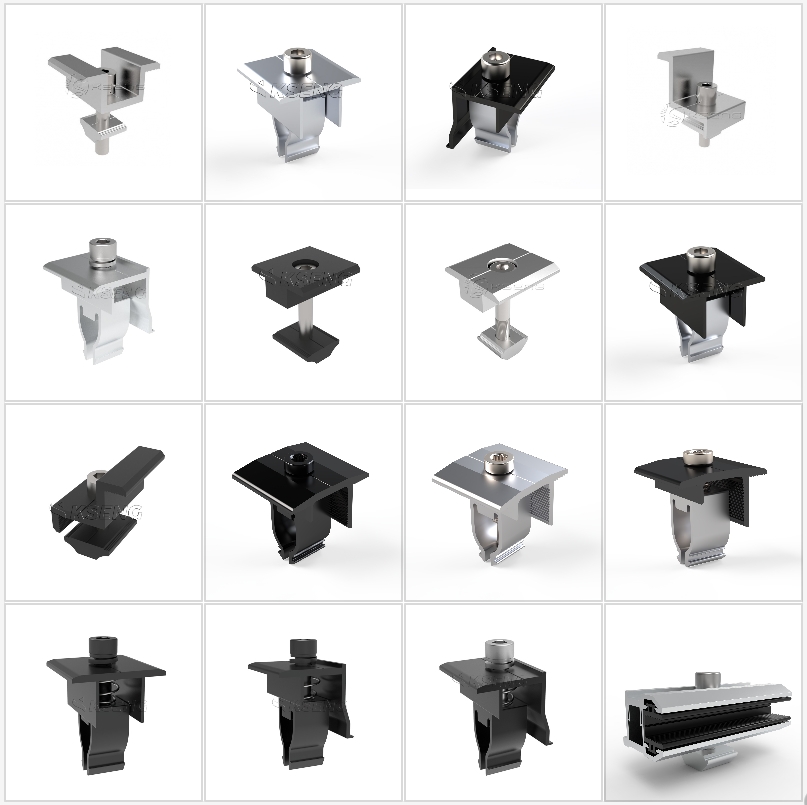

aluminum alloy solar mid and end clamp for solar modules and some frequently asked questions (FAQ):
Introduction to Aluminum Alloy solar mid and end clamp:
Function: The medium pressure block is used for the connection and fixation between two solar panels to ensure the stability and structural integrity between the modules.
Material: Usually made of high-strength aluminum alloy, such as AL6063-T5, which is lightweight, high-strength, and has good weather and corrosion resistance.
Design: The design of the center block is simple but strong, some of them are designed with specific grooves or hooks to fit different models of solar modules.
Surface treatment: The surface is usually anodized to provide an extra layer of protection and prolong service life.
Mounting: It is bolted or clamped to the frame of the module for quick and easy installation.
